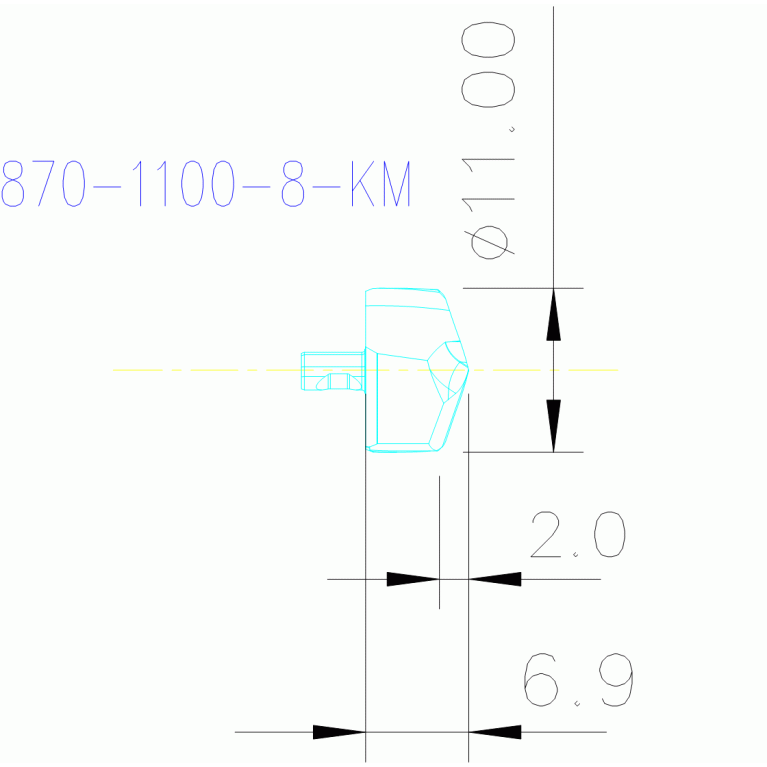

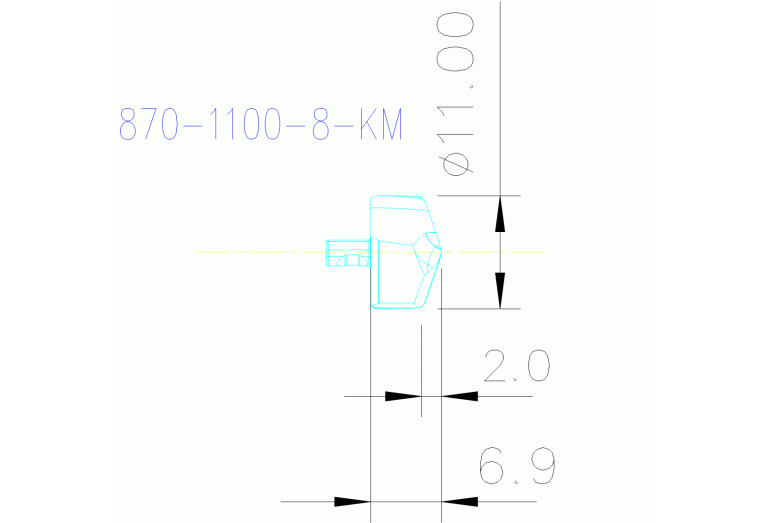

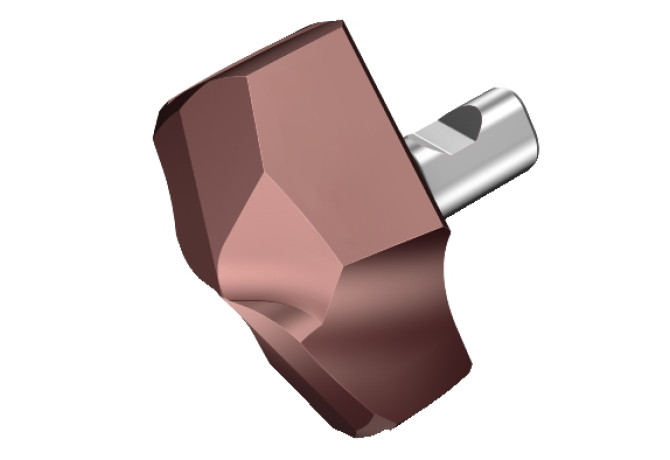

Главная Инструменты 203-03 - Replaceable insert flatted with chip flute 870-1100-8-KM 3234

870-1100-8-KM 3234

Артикул: 6239229

В наличии

0 ₽

В корзину

Описание

Характеристики

COATN (Coating)

PVD TiAlN

DC (Cutting diameter)

11 mm

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

SV-DK080000

GRDMFG (Grade manufacturers designation)

3234

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

SV$$DK08$$$$0R$$$$$

LF (Functional length)

4.94 mm

LOC-03 ISO

SV$$DK08$$$$0R$$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SV-DK080000

LPR (Protruding length)

6.9 mm

Materials

P,K

NOF (Flute count)

OAL (Overall length)

11.2 mm

PL (Point length)

1.96 mm

S1 (Insert thickness total)

4.46 mm

SIG (Point angle 1st step)

142 Degree

Working process

BVB - Drilling

WT (Weight of item)

0.003 kg
