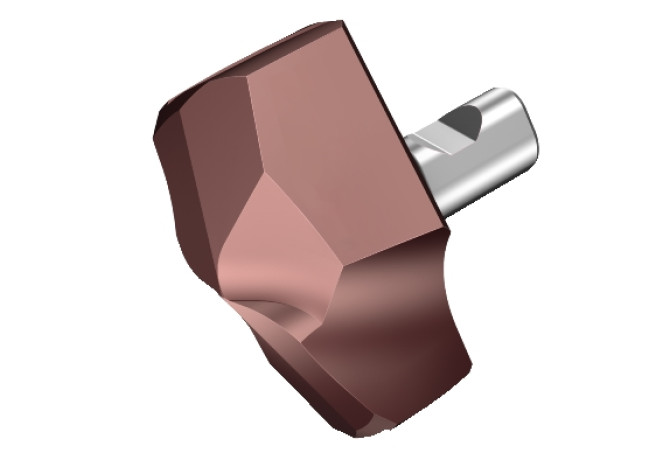

870-1050-7-KM 3234
870-1050-7-KM 3234
Артикул:
6239224
В наличии
0 ₽
Характеристики
COATN (Coating)
PVD TiAlN

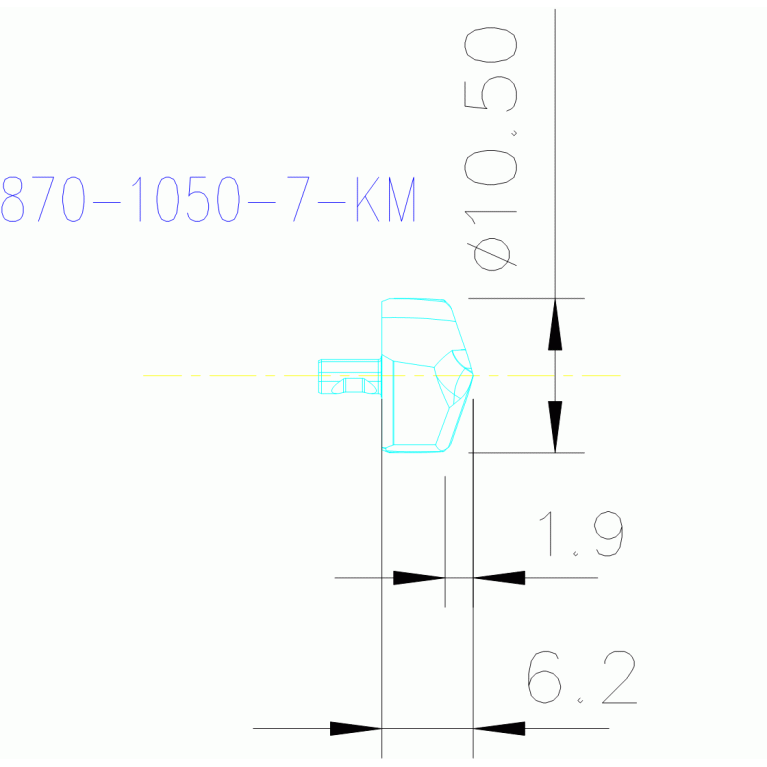

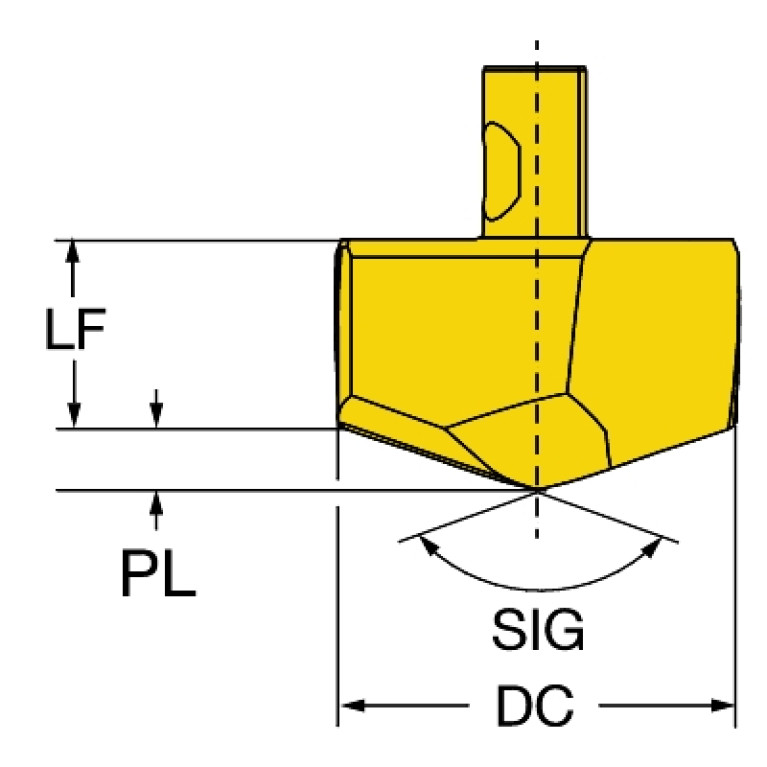

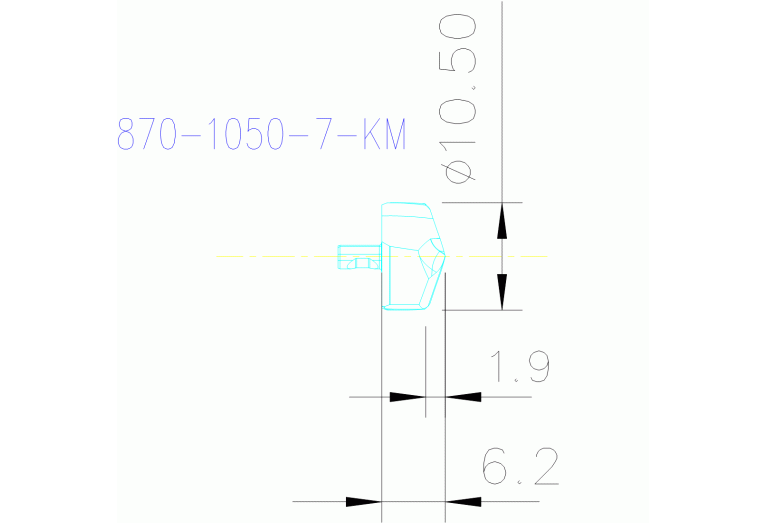

DC (Cutting diameter)
10.5 mm
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
SV-DK070000
GRDMFG (Grade manufacturers designation)
3234
GRDPRIO (Standard designation of the grade main application)
HC
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
SV$$DK07$$$$0R$$$$$
LF (Functional length)
4.29 mm
LOC-03 ISO
SV$$DK07$$$$0R$$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SV-DK070000
LPR (Protruding length)
6.2 mm
Materials
P,K
NOF (Flute count)
1
OAL (Overall length)
10.5 mm
PL (Point length)
1.91 mm
S1 (Insert thickness total)
4.26 mm
SIG (Point angle 1st step)
142 Degree
Working process
BVB - Drilling
WT (Weight of item)
0.003 kg
