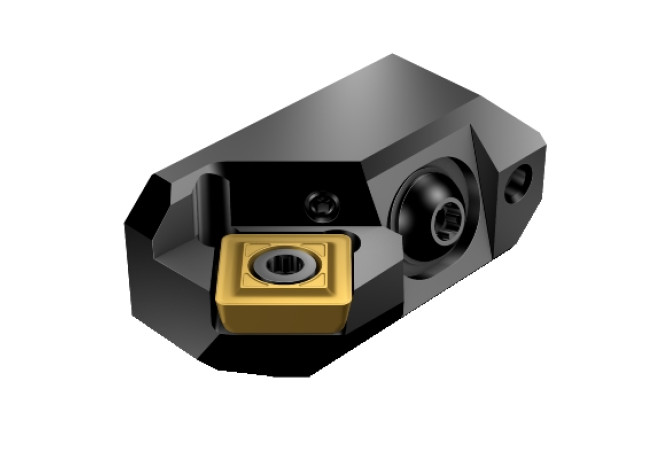

Главная Инструменты 314-00 - Cartridge for indexable insert unspecified SSSPR10CCX12

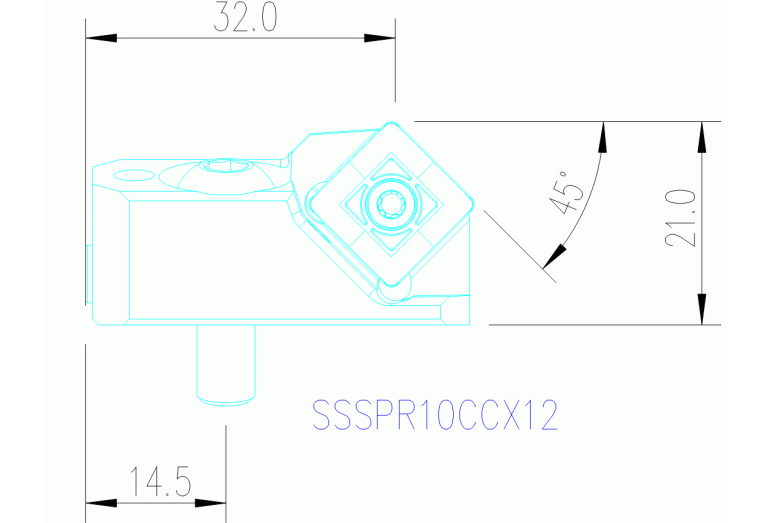

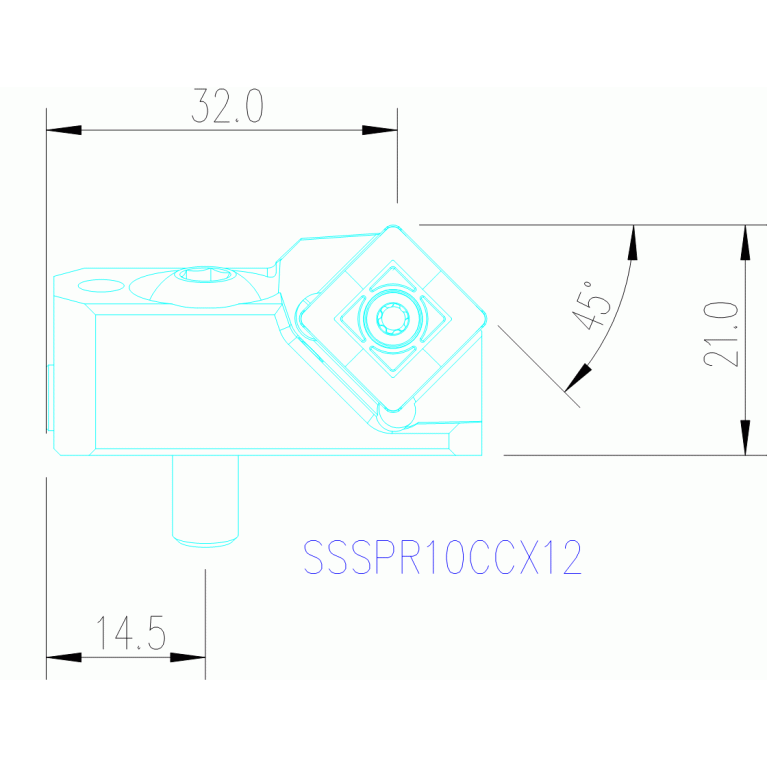

SSSPR10CCX12

Артикул: 7213316

В наличии

0 ₽

В корзину

Описание

Характеристики

BLDA (Tool style code Position A)

BMC (Body material code)

S - Solid steel

D1A (Corner radius Pos. A)

1 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

KKC010R0495

DIN CSW1

SV-TM120400

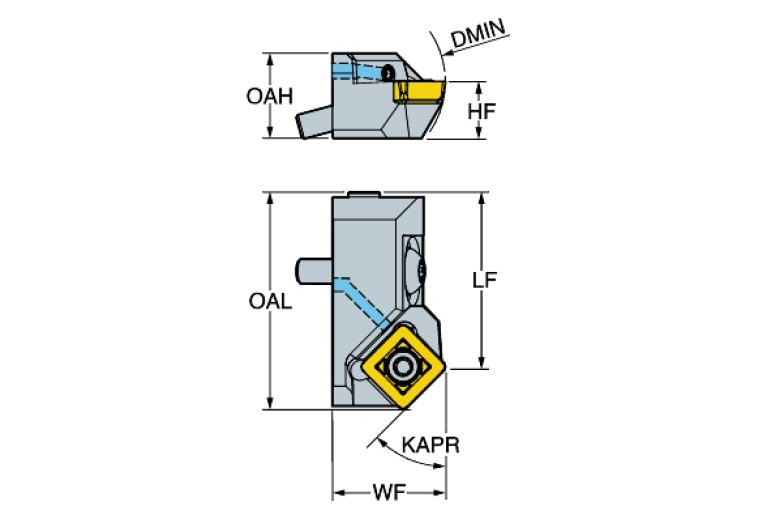

DMIN (Minimum bore diameter)

40 mm

EPSR (Insert included angle)

90 Degree

GAMO (Rake angle orthogonal)

0 Degree

HAND (Cutting direction)

R - Right

HF (Functional height)

10 mm

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

KKC04C010R$$$$

ISO CSW1

SV$$TM1204$$3**$$$$

KAPR (Tool cutting edge angle)

45 Degree

LAMS (Inclination angle)

0 Degree

LF (Functional length)

32 mm

LOC-03 ISO

KKC04C010R$$$$

LOC-03 (B Shank width)

10 mm

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

KKC

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

010R

LOC-03 (H Shank height)

14 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

KKC010R0495

MIID (Master insert identification)

SPMT1210-BM

OAH (Overall height)

14 mm

OAL (Overall length)

40.2 mm

OAW (Overall width)

21 mm

WF (Functional width)

21 mm

Working process

BAB - Open by boring

WT (Weight of item)

0.054 kg
