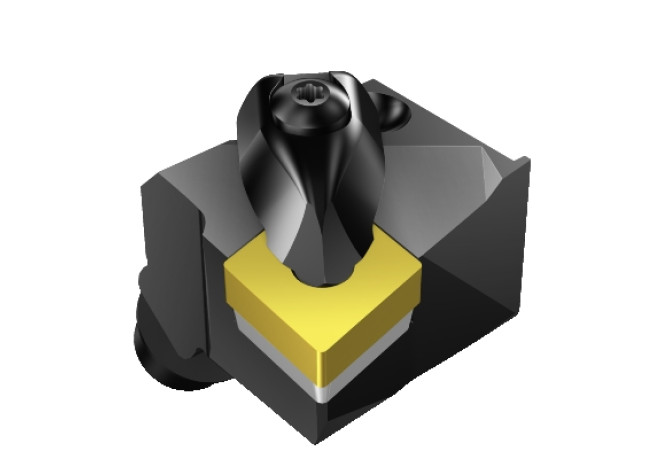

Главная Инструменты 314-00 - Cartridge for indexable insert unspecified S12-R820XLR40DCFN19

S12-R820XLR40DCFN19

Артикул: 5924287

В наличии

0 ₽

В корзину

Описание

Характеристики

A2A (Clearance angle major Pos. A)

0 Degree

BLDA (Tool style code Position A)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

6.35 mm

D1A (Corner radius Pos. A)

1.191 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

CCB01200285

DIN CSW1

CN1906992L

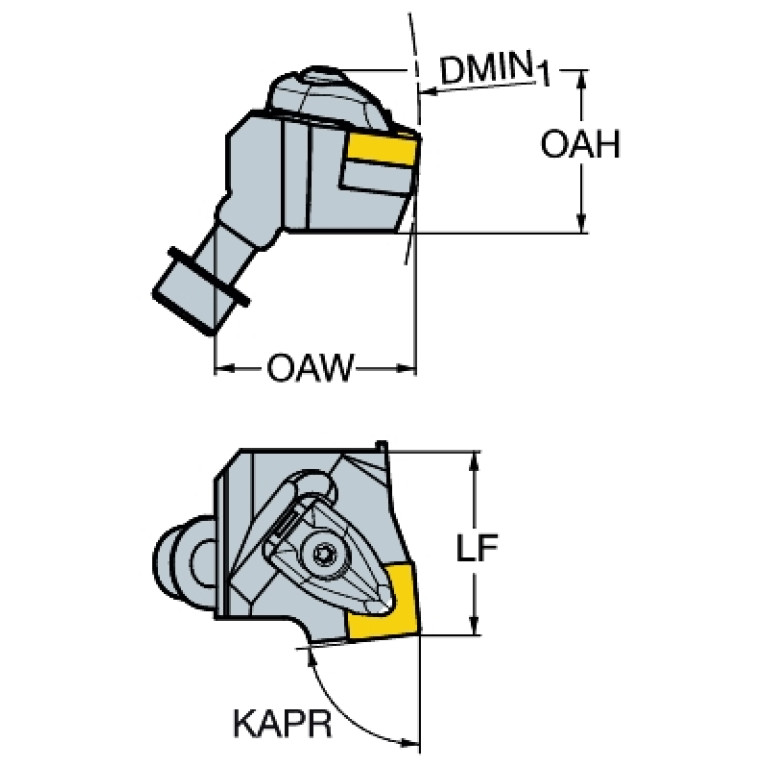

DMIN (Minimum bore diameter)

148 mm

EPSR (Insert included angle)

80 Degree

GAMO (Rake angle orthogonal)

-6 Degree

HAND (Cutting direction)

R - Right

HF (Functional height)

20 mm

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A (Indicator for ISO cutting plate Pos.A)

ISO

CCB02C0120$$$$

ISO CSW1

ISO$CN1906002L*****

KAPR (Tool cutting edge angle)

90 Degree

LAMS (Inclination angle)

-7 Degree

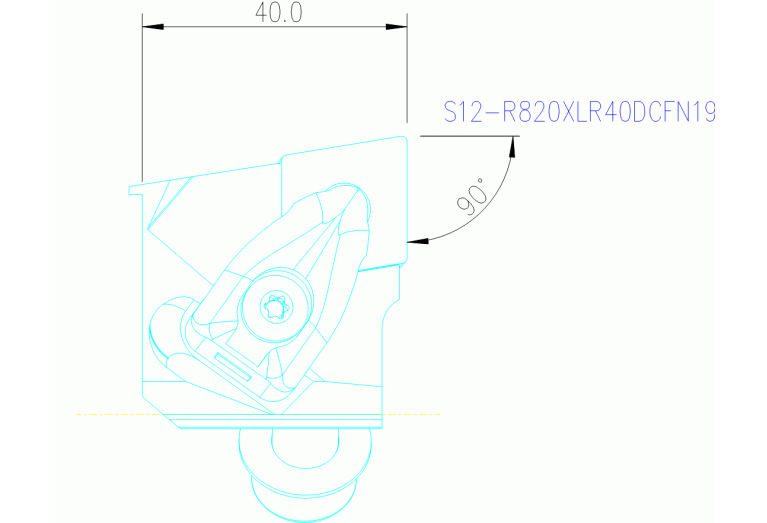

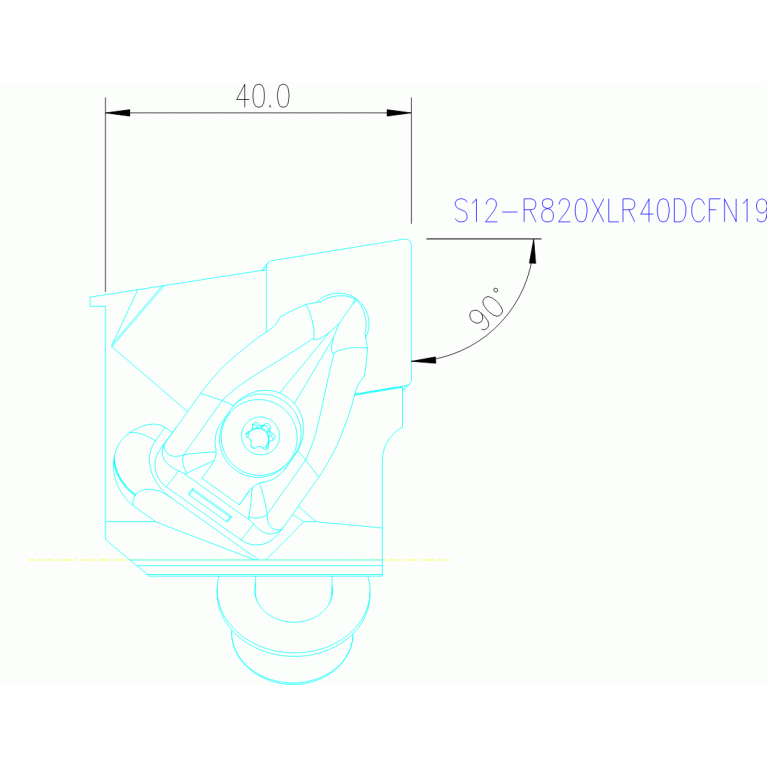

LF (Functional length)

40 mm

LOC-03 ISO

CCB02C0120$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CCB Coromant CoroBore SANDVIK

LOC-03 (CCUMS Connection code unit base)

8 non-dimensional size

LOC-03 (CZCMS Connection size code)

0120

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCB01200285

MIID (Master insert identification)

CNMG190612

OAH (Overall height)

40.78 mm

OAL (Overall length)

42 mm

OAW (Overall width)

44.54 mm

WF (Functional width)

42 mm

Working process

BAB - Open by boring

WT (Weight of item)

0.3 kg
