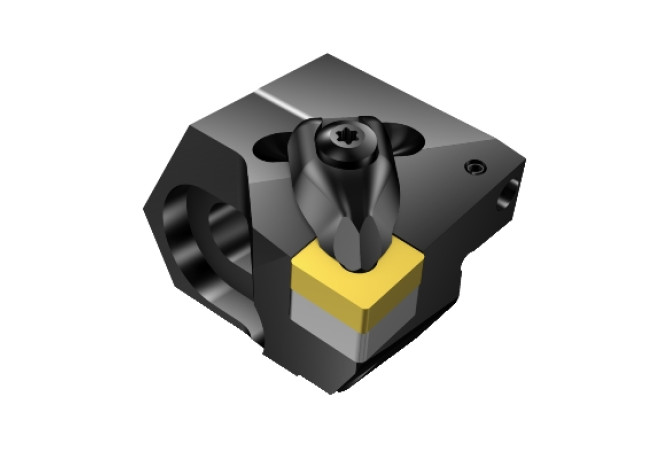

Главная Инструменты 314-00 - Cartridge for indexable insert unspecified R820G-BR24DSYN12A

R820G-BR24DSYN12A

Артикул: 5747951

В наличии

0 ₽

В корзину

Описание

Характеристики

A2A (Clearance angle major Pos. A)

0 Degree

BLDA (Tool style code Position A)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

4.76 mm

D1A (Corner radius Pos. A)

0.794 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

CCB00700185

DIN CSW1

SN1204992L

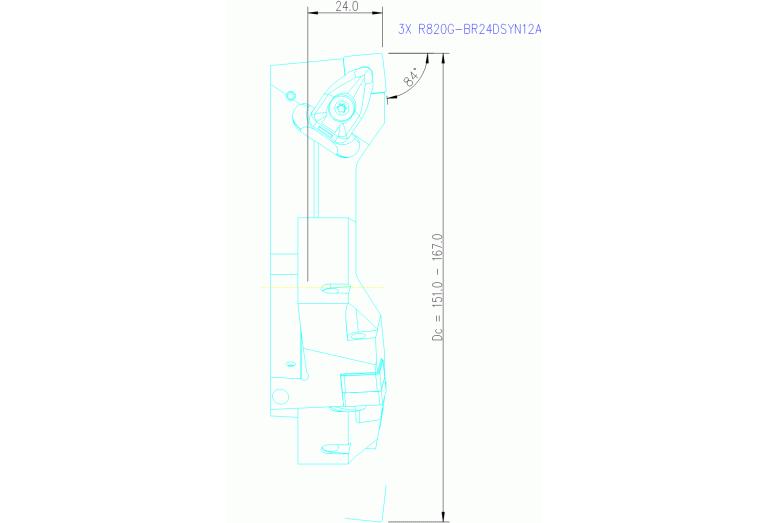

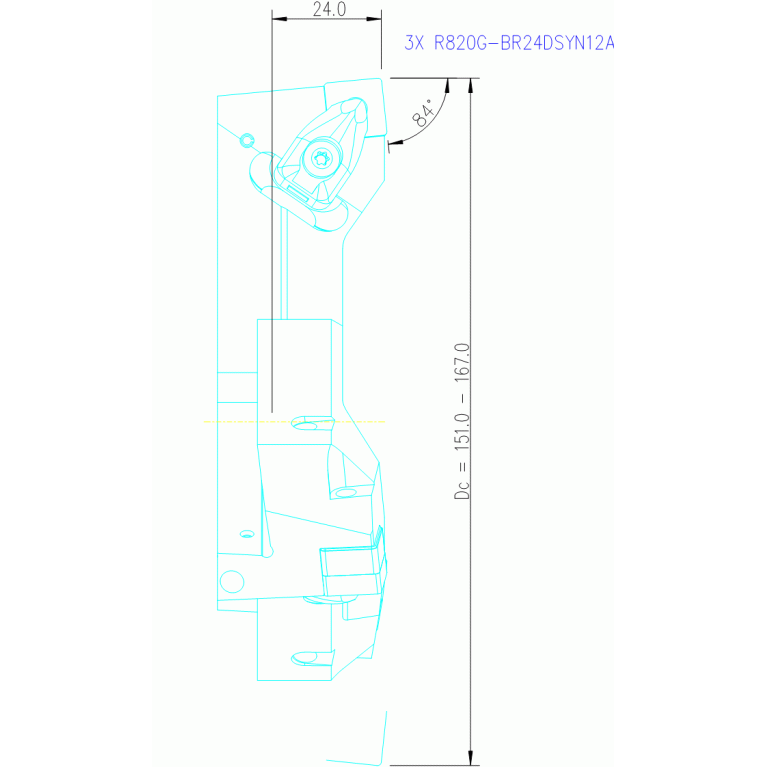

DMIN (Minimum bore diameter)

151 mm

EPSR (Insert included angle)

90 Degree

GAMO (Rake angle orthogonal)

-6 Degree

HAND (Cutting direction)

R - Right

HF (Functional height)

15.6 mm

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A (Indicator for ISO cutting plate Pos.A)

ISO

CCB01C0070$$$$

ISO CSW1

ISO$SN1204002L*****

KAPR (Tool cutting edge angle)

84 Degree

LAMS (Inclination angle)

-7 Degree

LF (Functional length)

24 mm

LOC-03 ISO

CCB01C0070$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CCB Coromant CoroBore SANDVIK

LOC-03 (CCUMS Connection code unit base)

8 non-dimensional size

LOC-03 (CZCMS Connection size code)

0070

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCB00700185

LPR (Protruding length)

25.2 mm

MIID (Master insert identification)

SNMG120408

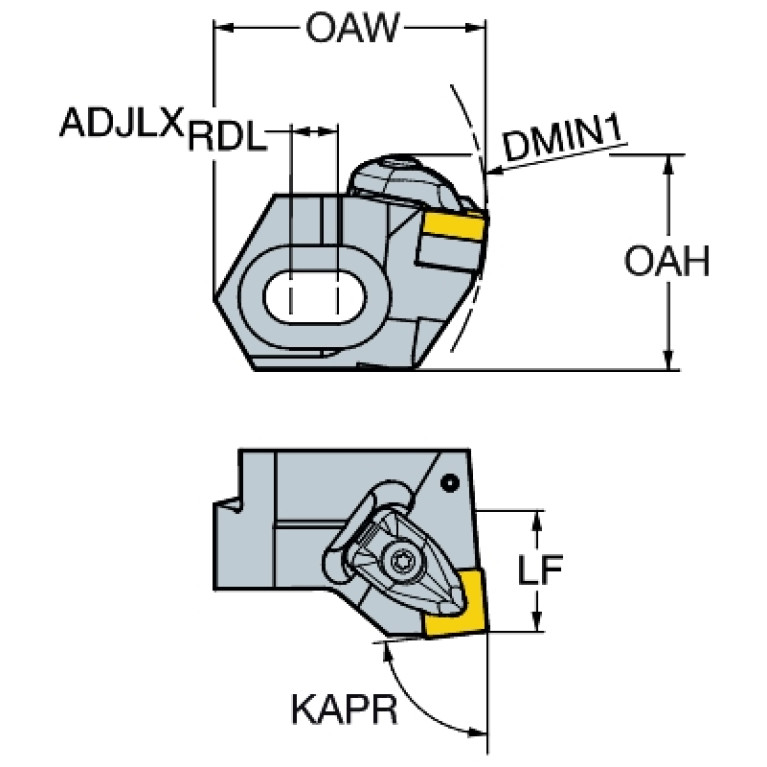

OAH (Overall height)

42.1 mm

OAL (Overall length)

37.2 mm

OAW (Overall width)

76.7 mm

WF (Functional width)

45.35 mm

Working process

BAB - Open by boring

WT (Weight of item)

0.399 kg
