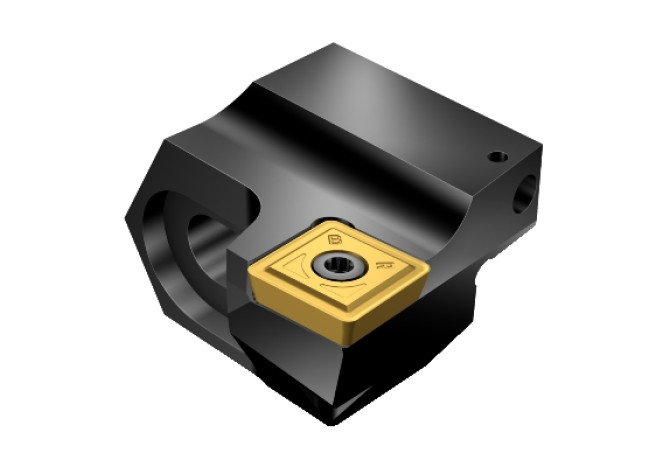

R820D-BR18SSYP12
R820D-BR18SSYP12
Артикул:
7254707
В наличии
0 ₽
Характеристики
BLDA (Tool style code Position A)
2
BMC (Body material code)
S - Solid steel
D1A (Corner radius Pos. A)
1 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCB00400185
DIN CSW1
SV-TM120400

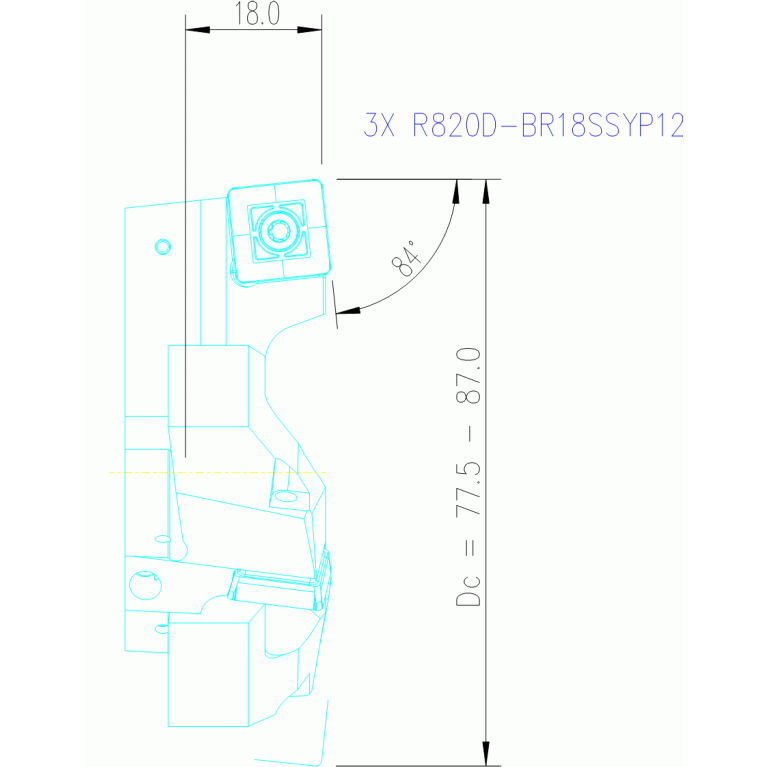

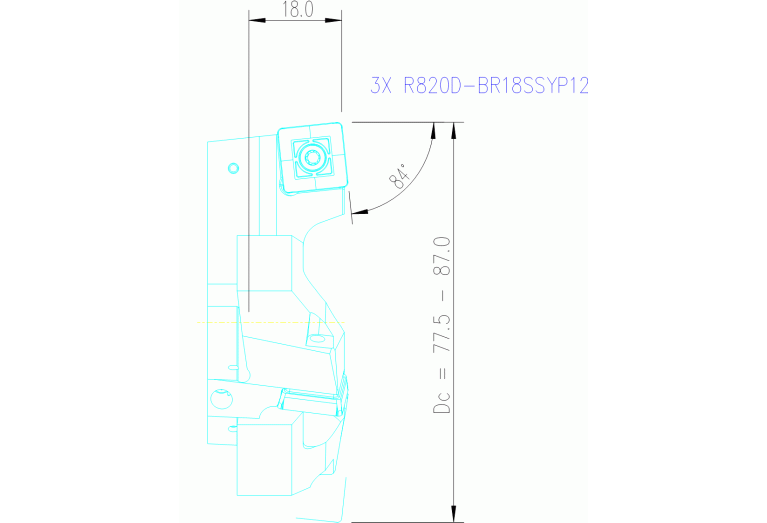

DMIN (Minimum bore diameter)
77.5 mm
EPSR (Insert included angle)
90 Degree
GAMO (Rake angle orthogonal)
5 Degree
HAND (Cutting direction)
R - Right
HF (Functional height)
12.8 mm
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
CCB01C0040$$$$
ISO CSW1
SV$$TM1204$$3**$$$$
KAPR (Tool cutting edge angle)
84 Degree
LAMS (Inclination angle)
0 Degree
LF (Functional length)
18 mm
LOC-03 ISO
CCB01C0040$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
CCB Coromant CoroBore SANDVIK
LOC-03 (CCUMS Connection code unit base)
8 non-dimensional size
LOC-03 (CZCMS Connection size code)
0040
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCB00400185
MIID (Master insert identification)
SPMT1210-BM

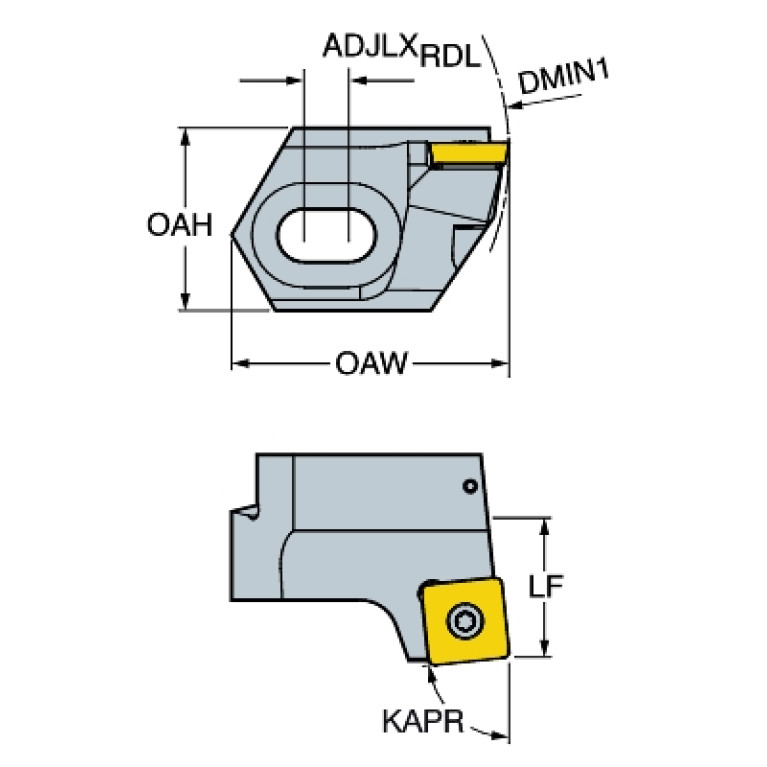

OAH (Overall height)
24.1 mm
OAL (Overall length)
27.2 mm
OAW (Overall width)
39.7 mm
WF (Functional width)
24.8 mm
Working process
BAB - Open by boring
WT (Weight of item)
0.091 kg
