R820C-BR18SSYC12A
R820C-BR18SSYC12A
Артикул:
5747478
В наличии
0 ₽
Характеристики
A2A (Clearance angle major Pos. A)
7 Degree
BLDA (Tool style code Position A)
2
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
4.76 mm
D1A (Corner radius Pos. A)
0.794 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
CCB00300185
DIN CSW1
SC1204993L

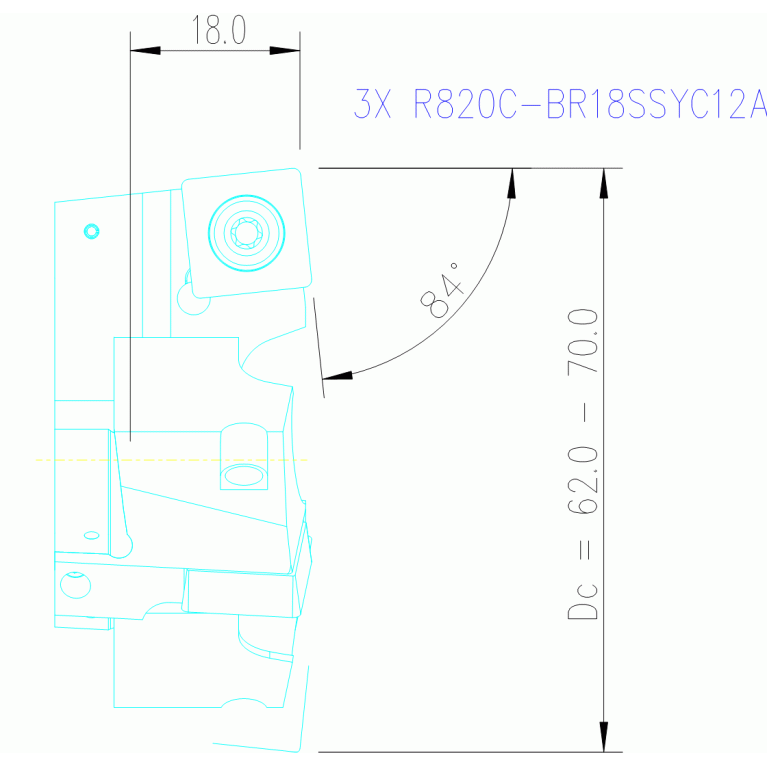

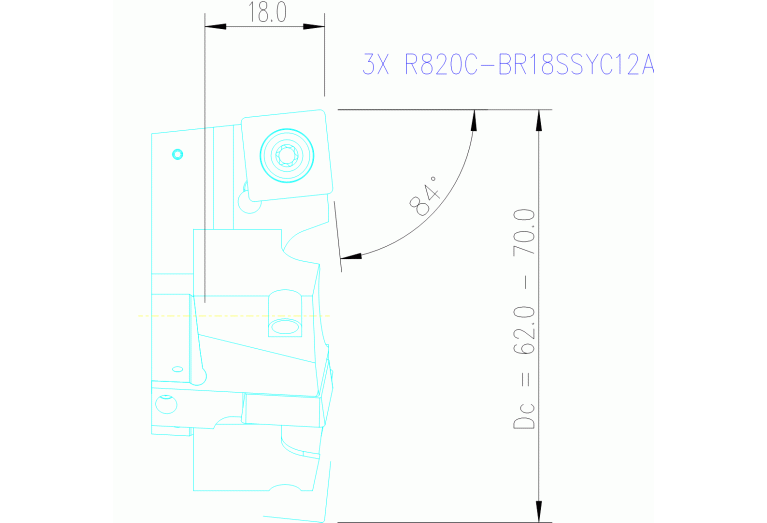

DMIN (Minimum bore diameter)
62 mm
EPSR (Insert included angle)
90 Degree
GAMO (Rake angle orthogonal)
0 Degree
HAND (Cutting direction)
R - Right
HF (Functional height)
11 mm
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A (Indicator for ISO cutting plate Pos.A)
1
ISO
CCB01C0030$$$$
ISO CSW1
ISO$SC1204003L*****
KAPR (Tool cutting edge angle)
84 Degree
LAMS (Inclination angle)
0 Degree
LF (Functional length)
18 mm
LOC-03 ISO
CCB01C0030$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
CCB Coromant CoroBore SANDVIK
LOC-03 (CCUMS Connection code unit base)
8 non-dimensional size
LOC-03 (CZCMS Connection size code)
0030
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCB00300185
LPR (Protruding length)
19.2 mm
MIID (Master insert identification)
SCMT120408

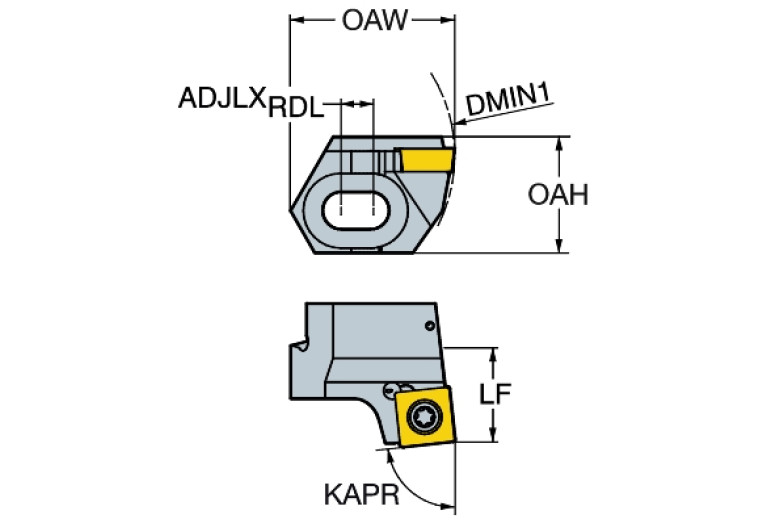

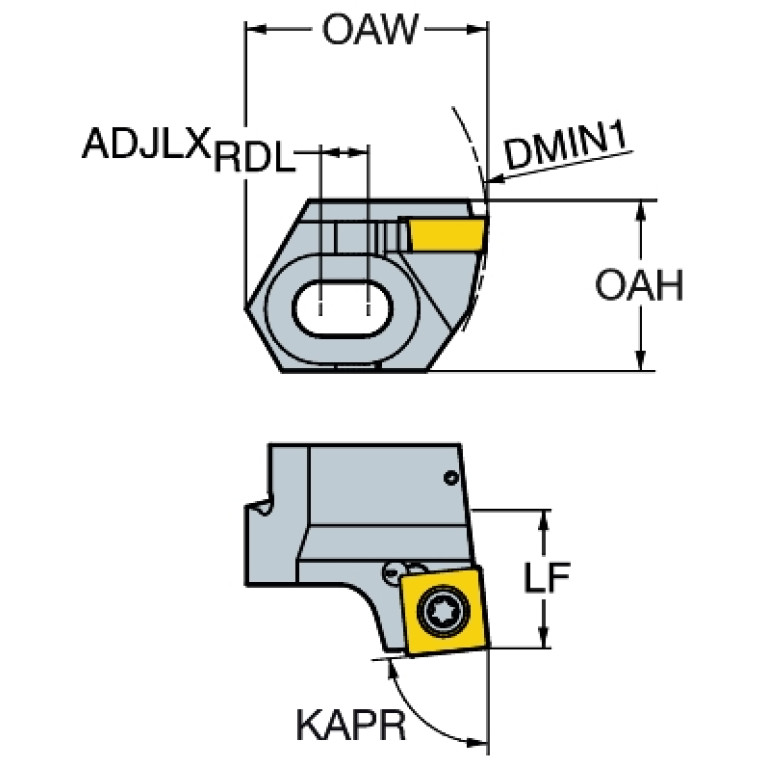

OAH (Overall height)
20.1 mm
OAL (Overall length)
27.2 mm
OAW (Overall width)
32 mm
WF (Functional width)
18.08 mm
Working process
BAB - Open by boring
WT (Weight of item)
0.069 kg
