Главная Инструменты 314-00 - Cartridge for indexable insert unspecified R820C-AR16SCLC09A

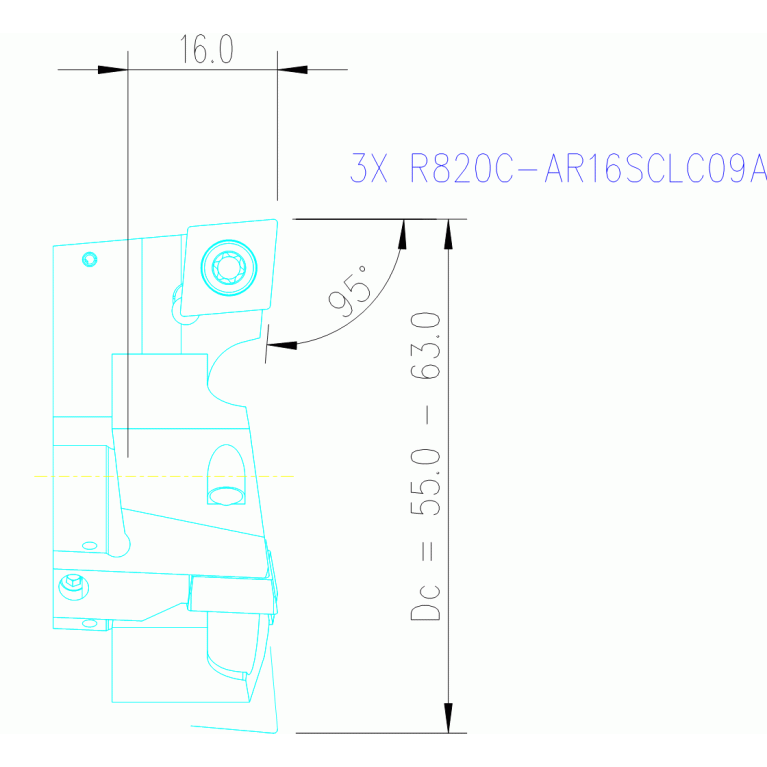

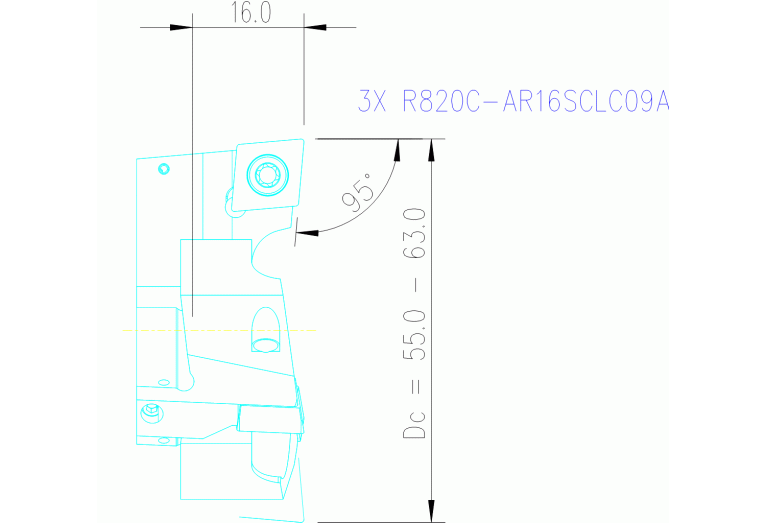

R820C-AR16SCLC09A

Артикул: 5747511

В наличии

0 ₽

В корзину

Описание

Характеристики

A2A (Clearance angle major Pos. A)

7 Degree

BLDA (Tool style code Position A)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

3.97 mm

D1A (Corner radius Pos. A)

0.794 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

CCB00300185

DIN CSW1

CC09T3993L

DMIN (Minimum bore diameter)

55 mm

EPSR (Insert included angle)

80 Degree

GAMO (Rake angle orthogonal)

0 Degree

HAND (Cutting direction)

R - Right

HF (Functional height)

10.8 mm

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A (Indicator for ISO cutting plate Pos.A)

ISO

CCB01C0030$$$$

ISO CSW1

ISO$CC09T3003L*****

KAPR (Tool cutting edge angle)

95 Degree

LAMS (Inclination angle)

0 Degree

LF (Functional length)

16 mm

LOC-03 ISO

CCB01C0030$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CCB Coromant CoroBore SANDVIK

LOC-03 (CCUMS Connection code unit base)

8 non-dimensional size

LOC-03 (CZCMS Connection size code)

0030

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCB00300185

MIID (Master insert identification)

CCMT09T308

OAH (Overall height)

20.1 mm

OAL (Overall length)

24 mm

OAW (Overall width)

28.6 mm

WF (Functional width)

14.65 mm

Working process

BAB - Open by boring

WT (Weight of item)

0.052 kg
