R820A-BR11SCFC06B
R820A-BR11SCFC06B
Артикул:
7254694
В наличии
0 ₽
Характеристики
A2A (Clearance angle major Pos. A)
7 Degree
BLDA (Tool style code Position A)
3
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
2.38 mm
D1A (Corner radius Pos. A)
0.397 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCB00100185
DIN CSW1
CC0602993L

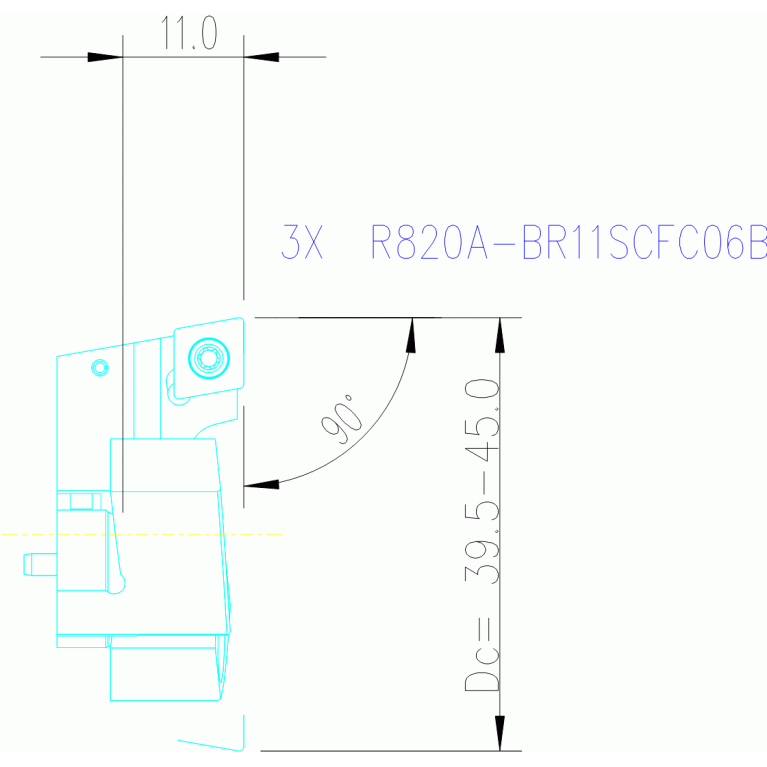

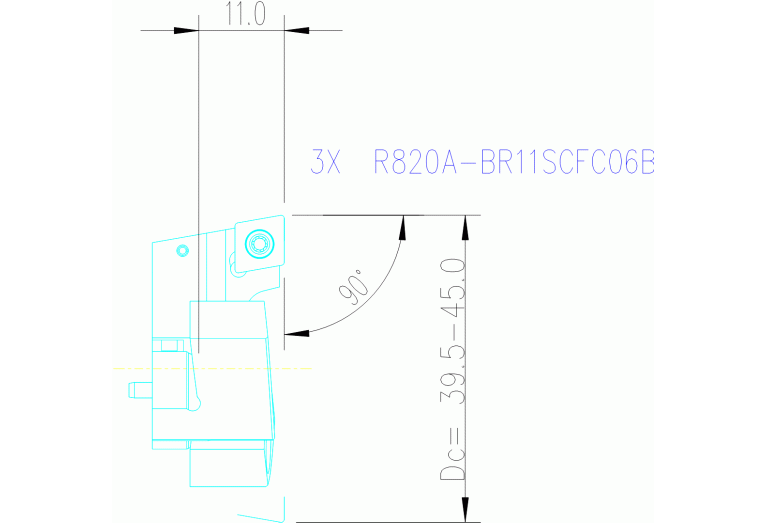

DMIN (Minimum bore diameter)
39.5 mm
EPSR (Insert included angle)
80 Degree
GAMO (Rake angle orthogonal)
0 Degree
HAND (Cutting direction)
R - Right
HF (Functional height)
7 mm
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A (Indicator for ISO cutting plate Pos.A)
1
ISO
CCB01C0010$$$$
ISO CSW1
ISO$CC0602003L*****
KAPR (Tool cutting edge angle)
90 Degree
LAMS (Inclination angle)
0 Degree
LF (Functional length)
11 mm
LOC-03 ISO
CCB01C0010$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
CCB Coromant CoroBore SANDVIK
LOC-03 (CCUMS Connection code unit base)
8 non-dimensional size
LOC-03 (CZCMS Connection size code)
0010
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCB00100185
MIID (Master insert identification)
CCMT060204

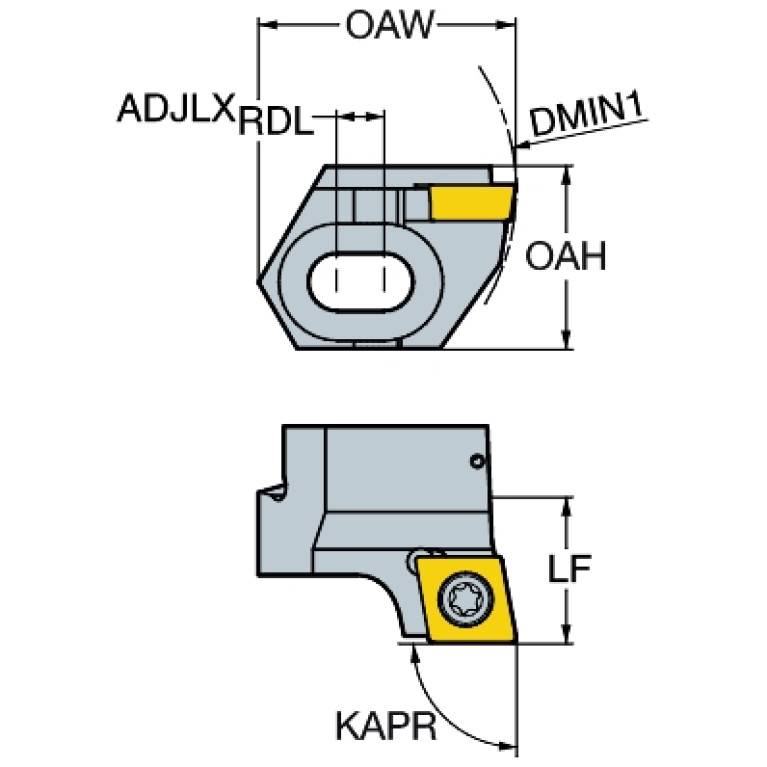

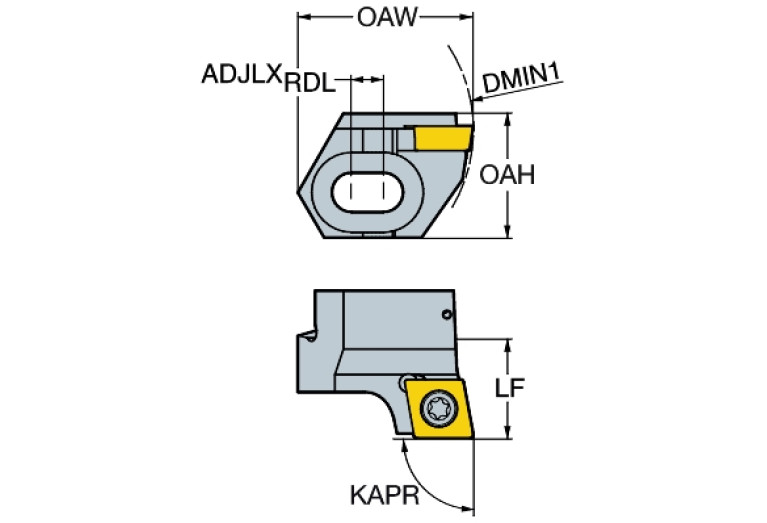

OAH (Overall height)
12.9 mm
OAL (Overall length)
17 mm
OAW (Overall width)
19.6 mm
WF (Functional width)
12.05 mm
Working process
BAB - Open by boring
WT (Weight of item)
0.02 kg
