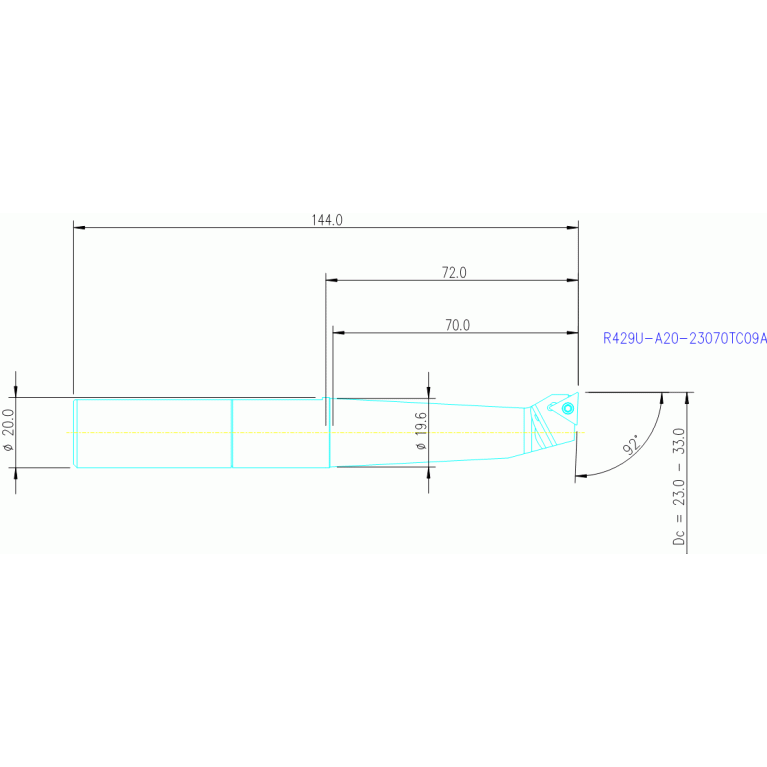

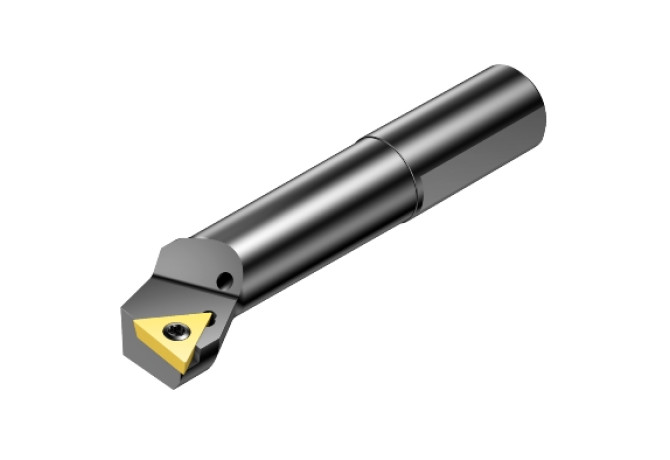

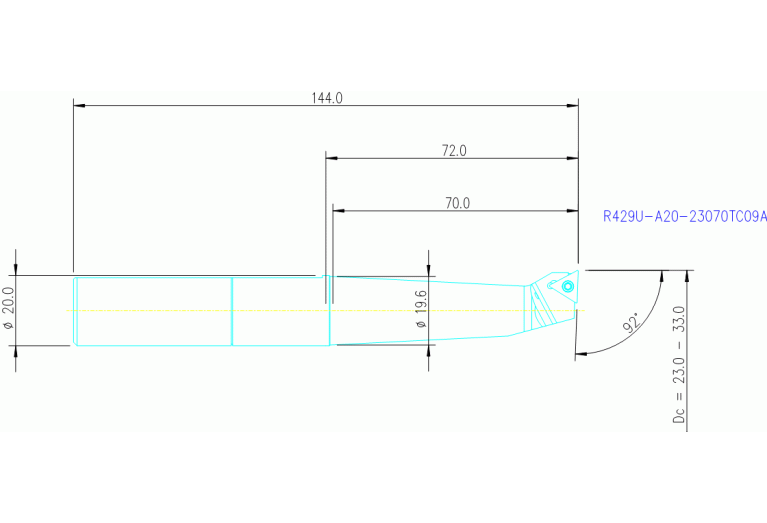

R429U-A20-23070 TC09A
R429U-A20-23070 TC09A
Артикул:
5746648
В наличии
0 ₽
Характеристики
A2A (Clearance angle major Pos. A)
7 Degree
B3A (Inscribed circle diameter Pos. A)
5.556 mm
BLDA (Tool style code Position A)
1
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
2.381 mm
D1A (Corner radius Pos. A)
0.198 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
ZYL02002215
DIN CSW1
TC0902043L

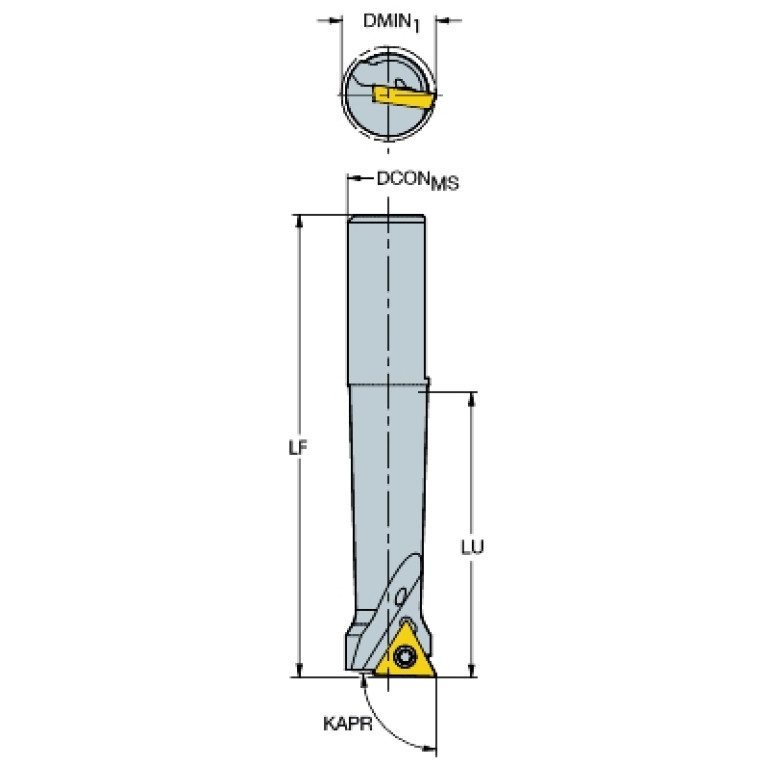

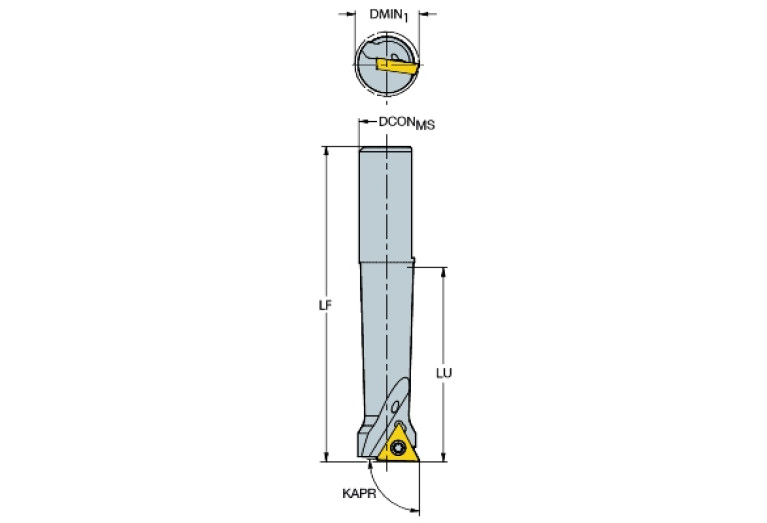

DMIN (Minimum bore diameter)
23 mm
GAMO (Rake angle orthogonal)
0 Degree
HAND (Cutting direction)
R - Right
HF (Functional height)
0 mm
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A (Indicator for ISO cutting plate Pos.A)
1
ISO
ZYL22G2000$$$$
ISO CSW1
ISO$TC0902003L***04
KAPR (Tool cutting edge angle)
92 Degree
LAMS (Inclination angle)
-4 Degree
LB (Body length)
70 mm
LF (Functional length)
144 mm
LH (Head length)
70 mm
LOC-03 ISO
ZYL22G2000$$$$
LOC-03 (CCFMS Connection code form)
22
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
1 Metric with coolant
LOC-03 (CZCMS Connection size code)
0200
LOC-03 (DCONMS Diameter)
20 mm
LOC-03 (H Shank height)
19.5 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02002215
LPR (Protruding length)
99 mm
LSC (Clamping length)
72 mm
MIID (Master insert identification)
TCMT090202
OAL (Overall length)
144 mm
WF (Functional width)
11.5 mm
Working process
BAB - Open by boring
WT (Weight of item)
0.29 kg
