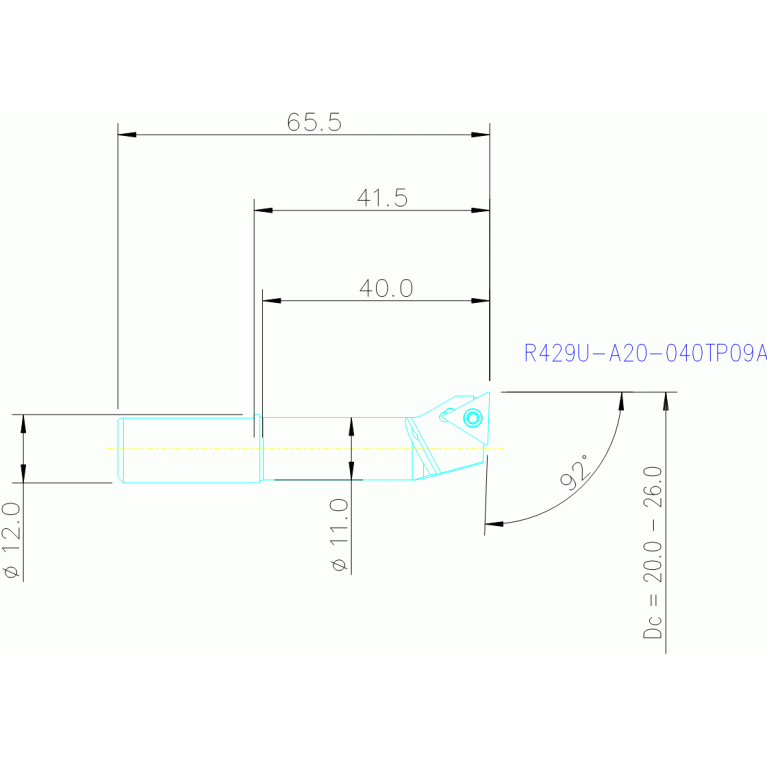

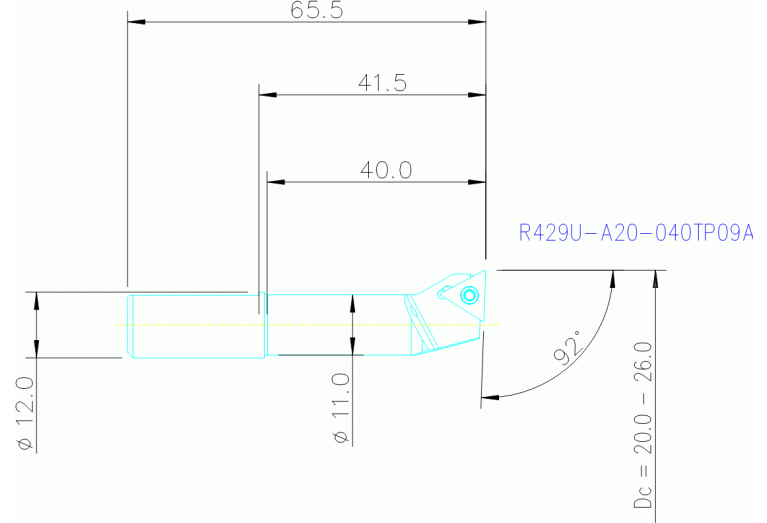

R429U-A20-040TP09A
R429U-A20-040TP09A
Артикул:
5746709
В наличии
0 ₽
Характеристики
A2A (Clearance angle major Pos. A)
11 Degree
BLDA (Tool style code Position A)
1
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
2.38 mm
D1A (Corner radius Pos. A)
0.198 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
ZYL01202215
DIN CSW1
TP0902043N
DMIN (Minimum bore diameter)
20 mm
EPSR (Insert included angle)
60 Degree
GAMO (Rake angle orthogonal)
0 Degree
HAND (Cutting direction)
R - Right
HF (Functional height)
0 mm
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
ZYL22G1200$$$$
ISO CSW1
ISO$TP0902003****04

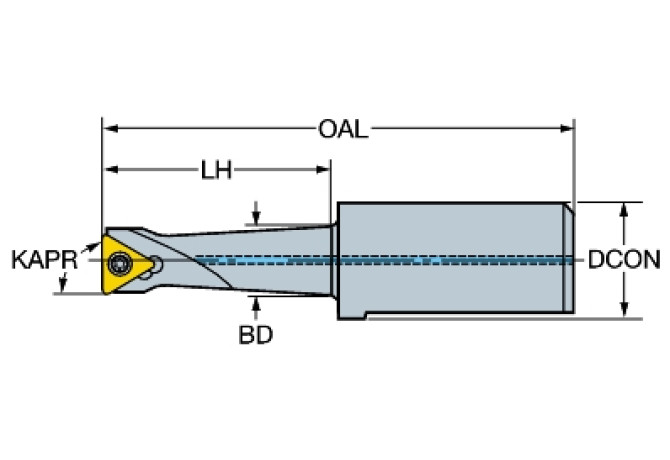

KAPR (Tool cutting edge angle)
92 Degree
LAMS (Inclination angle)
-2 Degree
LF (Functional length)
65.5 mm
LOC-03 ISO
ZYL22G1200$$$$
LOC-03 (CCFMS Connection code form)
22
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
1 Metric with coolant
LOC-03 (CZCMS Connection size code)
0120
LOC-03 (DCONMS Diameter)
12 mm
LOC-03 (H Shank height)
11.5 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01202215
MIID (Master insert identification)
TPMT090202
OAL (Overall length)
65.5 mm
WF (Functional width)
10 mm
Working process
BAB - Open by boring
WT (Weight of item)
0.02 kg
