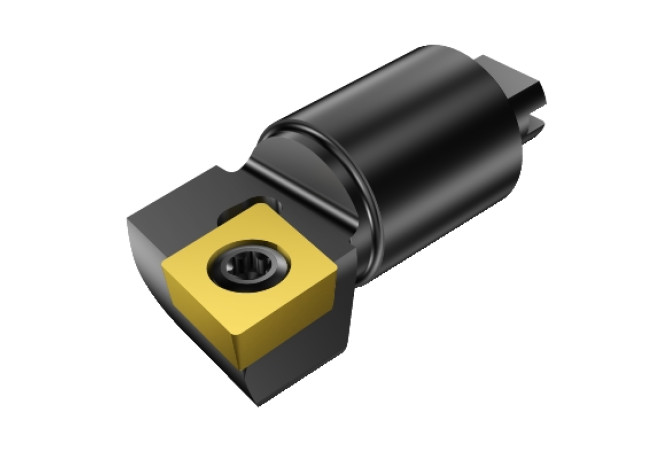

Главная Инструменты 314-00 - Cartridge for indexable insert unspecified R148D-12-0902

R148D-12-0902

Артикул: 5741566

В наличии

0 ₽

В корзину

Описание

Характеристики

A2A (Clearance angle major Pos. A)

7 Degree

BLDA (Tool style code Position A)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

2.38 mm

D1A (Corner radius Pos. A)

0 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

CFB01200180

DIN CSW1

TC0902043N

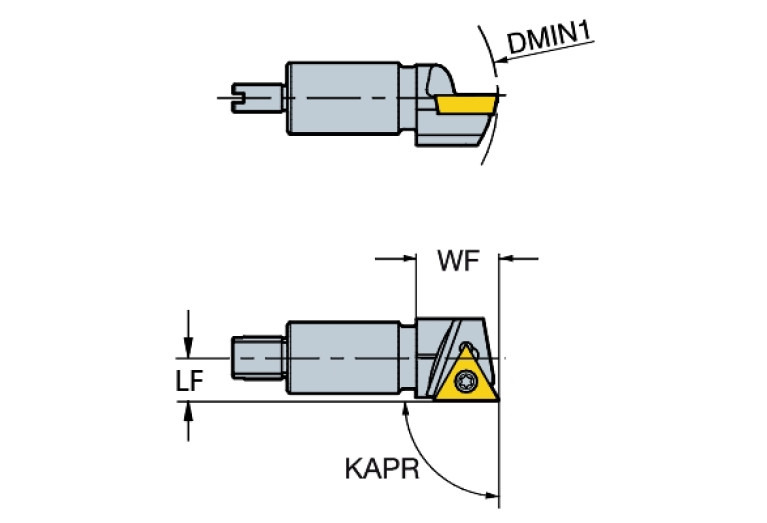

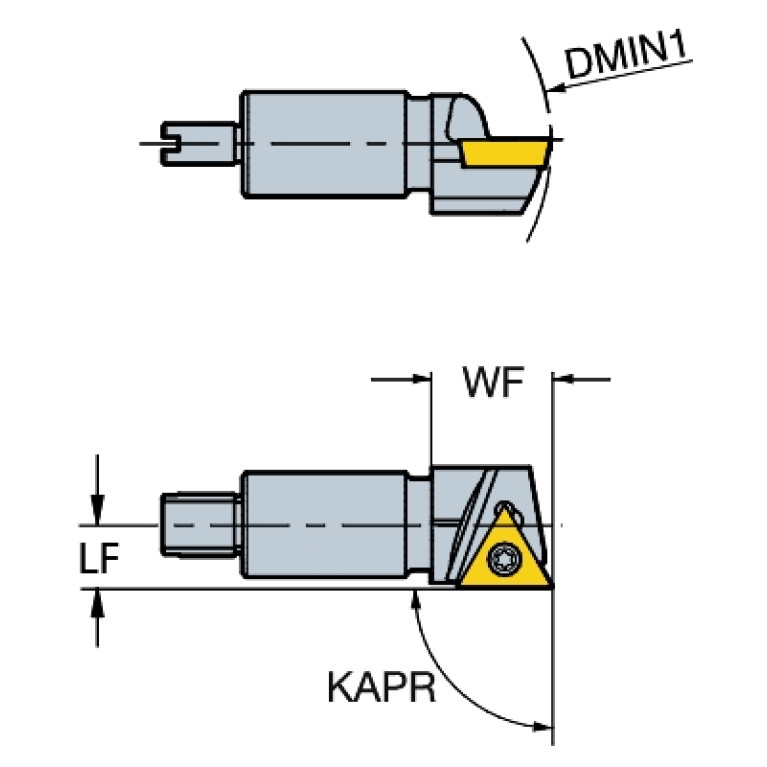

DMIN (Minimum bore diameter)

36.5 mm

EPSR (Insert included angle)

60 Degree

GAMO (Rake angle orthogonal)

0 Degree

HAND (Cutting direction)

R - Right

HF (Functional height)

0.5 mm

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

CFB01C0120$$$$

ISO CSW1

ISO$TC0902003****04

KAPR (Tool cutting edge angle)

90 Degree

LAMS (Inclination angle)

0 Degree

LF (Functional length)

14.3 mm

LOC-03 ISO

CFB01C0120$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

0 Hole in machine direction or shaft in workpiece direction

LOC-03 (CCTMS Connection code type)

CFB Coromant Fine Boring SANDVIK

LOC-03 (CCUMS Connection code unit base)

8 non-dimensional size

LOC-03 (CZCMS Connection size code)

0120

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CFB01200180

MIID (Master insert identification)

TCMT090200RE=0

OAL (Overall length)

32.9 mm

WF (Functional width)

6.3 mm

Working process

BAB - Open by boring

WT (Weight of item)

0.038 kg
