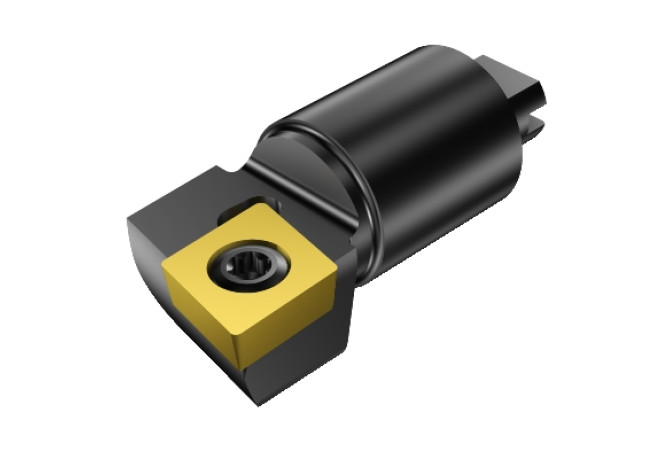

Главная Инструменты 314-00 - Cartridge for indexable insert unspecified L148D-31-06T1

L148D-31-06T1

L148D-31-06T1 L148D-31-06T1 L148D-31-06T1

L148D-31-06T1

SV - Sandvik-Coromant
Артикул: 5732429
В наличии
0 ₽
В корзину
Описание
Характеристики
A2A (Clearance angle major Pos. A)
7 Degree
BLDA (Tool style code Position A)
1
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
1.98 mm
D1A (Corner radius Pos. A)
0 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
CFB03100180
DIN CSW1
TC06T1043N

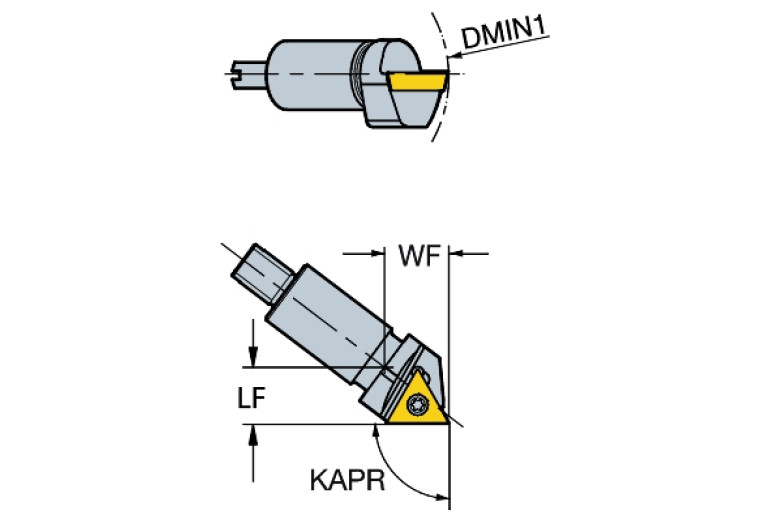

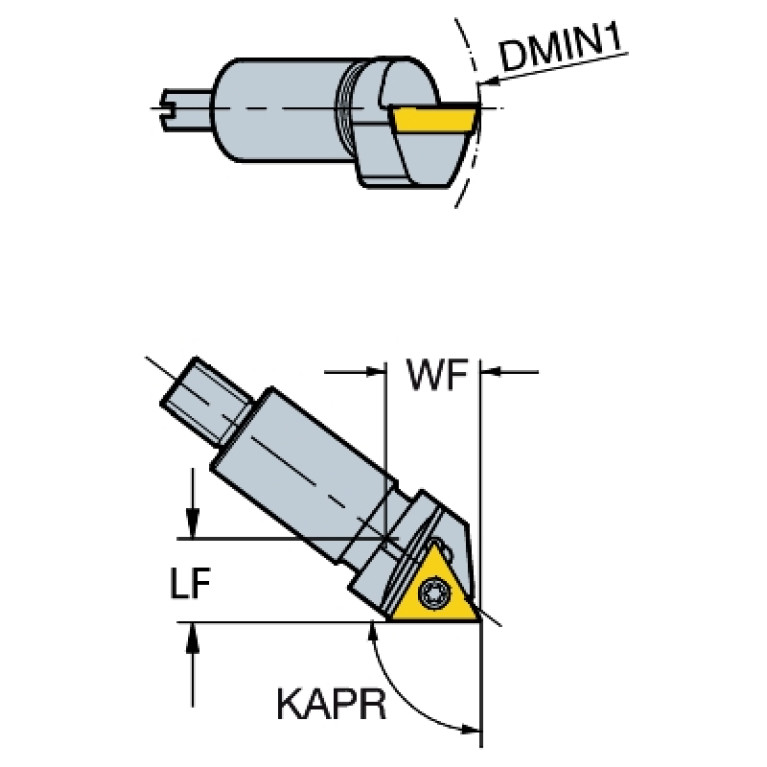

DMIN (Minimum bore diameter)
24.8 mm
EPSR (Insert included angle)
60 Degree
GAMO (Rake angle orthogonal)
0 Degree
HAND (Cutting direction)
L - Left
HF (Functional height)
0.5 mm
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
CFB01C0310$$$$
ISO CSW1
ISO$TC06T1003****04
KAPR (Tool cutting edge angle)
90 Degree
LAMS (Inclination angle)
0 Degree
LF (Functional length)
13.8 mm
LOC-03 ISO
CFB01C0310$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
0 Hole in machine direction or shaft in workpiece direction
LOC-03 (CCTMS Connection code type)
CFB Coromant Fine Boring SANDVIK
LOC-03 (CCUMS Connection code unit base)
8 non-dimensional size
LOC-03 (CZCMS Connection size code)
0310
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CFB03100180
MIID (Master insert identification)
TCMT06T100RE=0
OAL (Overall length)
25 mm
WF (Functional width)
0.2 mm
Working process
BAB - Open by boring
WT (Weight of item)
0.029 kg
