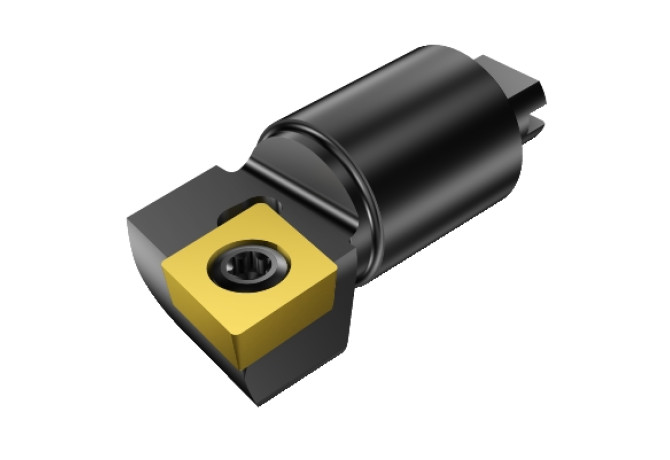

Главная Инструменты 314-00 - Cartridge for indexable insert unspecified L148D-13-11 03

L148D-13-11 03

Артикул: 5734425

В наличии

0 ₽

В корзину

Описание

Характеристики

A2A (Clearance angle major Pos. A)

7 Degree

BLDA (Tool style code Position A)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

3.18 mm

D1A (Corner radius Pos. A)

0.397 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

CFB01300180

DIN CSW1

TC1103043L

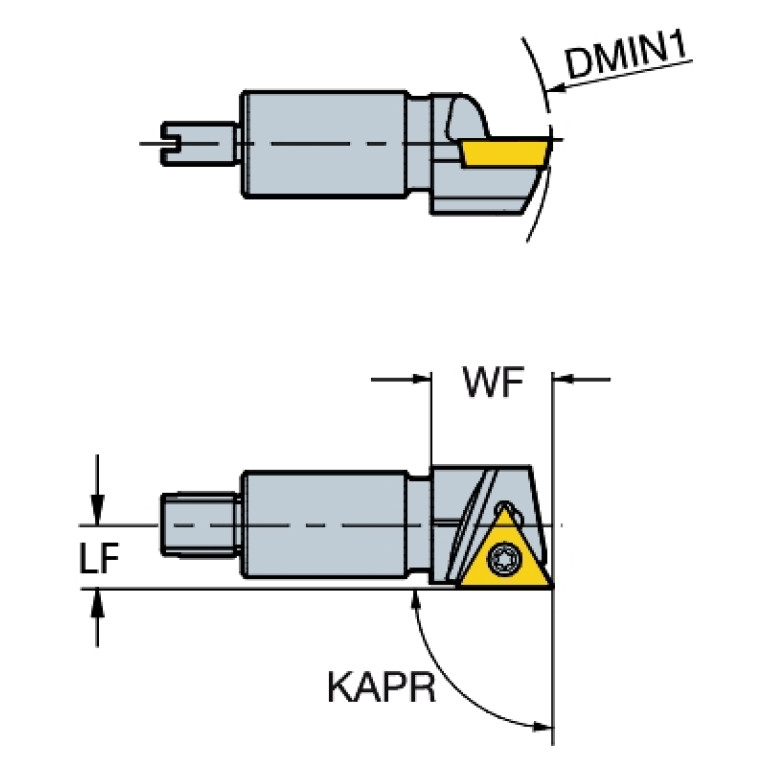

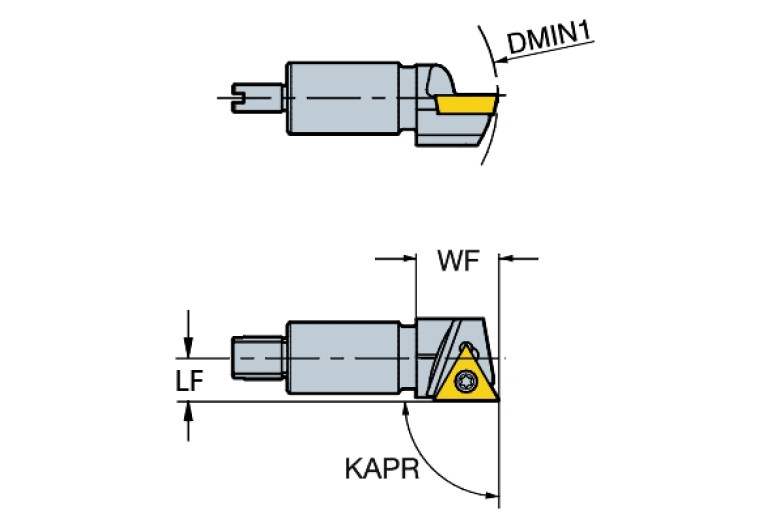

DMIN (Minimum bore diameter)

48.5 mm

EPSR (Insert included angle)

60 Degree

GAMO (Rake angle orthogonal)

0 Degree

HAND (Cutting direction)

L - Left

HF (Functional height)

0.5 mm

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A (Indicator for ISO cutting plate Pos.A)

ISO

CFB01C0130$$$$

ISO CSW1

ISO$TC1103003L***04

KAPR (Tool cutting edge angle)

90 Degree

LAMS (Inclination angle)

0 Degree

LF (Functional length)

19.9 mm

LOC-03 ISO

CFB01C0130$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

0 Hole in machine direction or shaft in workpiece direction

LOC-03 (CCTMS Connection code type)

CFB Coromant Fine Boring SANDVIK

LOC-03 (CCUMS Connection code unit base)

8 non-dimensional size

LOC-03 (CZCMS Connection size code)

0130

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CFB01300180

MIID (Master insert identification)

TCMT110304

OAL (Overall length)

47.2 mm

WF (Functional width)

7.2 mm

Working process

BAB - Open by boring

WT (Weight of item)

0.048 kg
