Главная Инструменты 314-00 - Cartridge for indexable insert unspecified CXS-06-06 030TC05

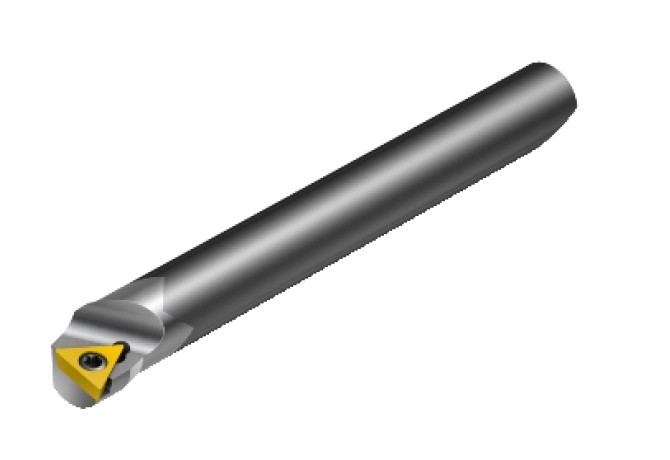

CXS-06-06 030TC05

CXS-06-06 030TC05 CXS-06-06 030TC05 CXS-06-06 030TC05 CXS-06-06 030TC05

CXS-06-06 030TC05

SV - Sandvik-Coromant
Артикул: 6424094
В наличии
0 ₽
В корзину
Описание
Характеристики
A2A (Clearance angle major Pos. A)
7 Degree
B3A (Inscribed circle diameter Pos. A)
3.175 mm
BLDA (Tool style code Position A)
1
BMC (Body material code)
H - Solid carbide
C1A (Insert thickness Pos. A)
1.4 mm
D1A (Corner radius Pos. A)
0 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL00605415
DIN CSW1
TC0501993L

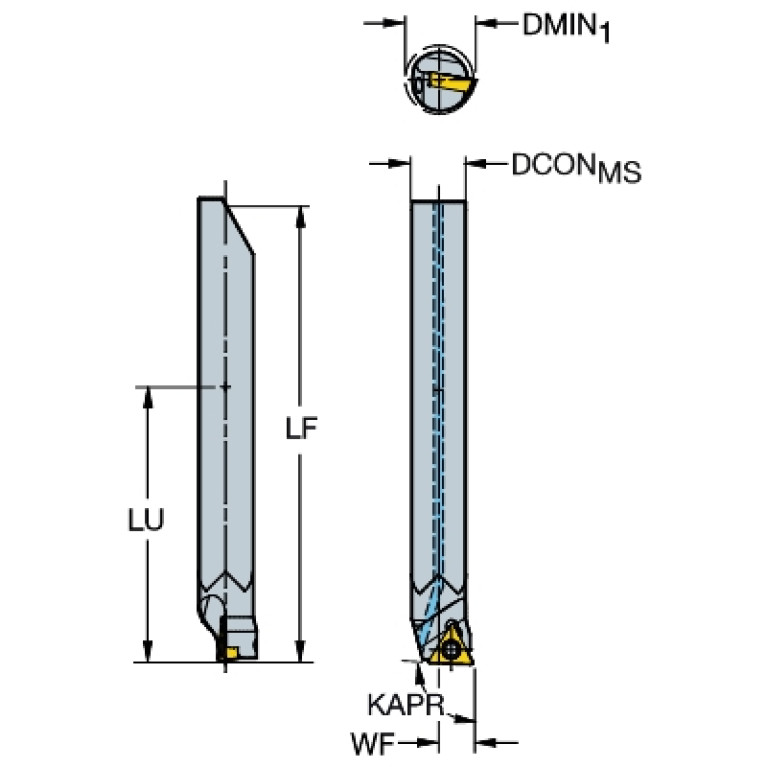

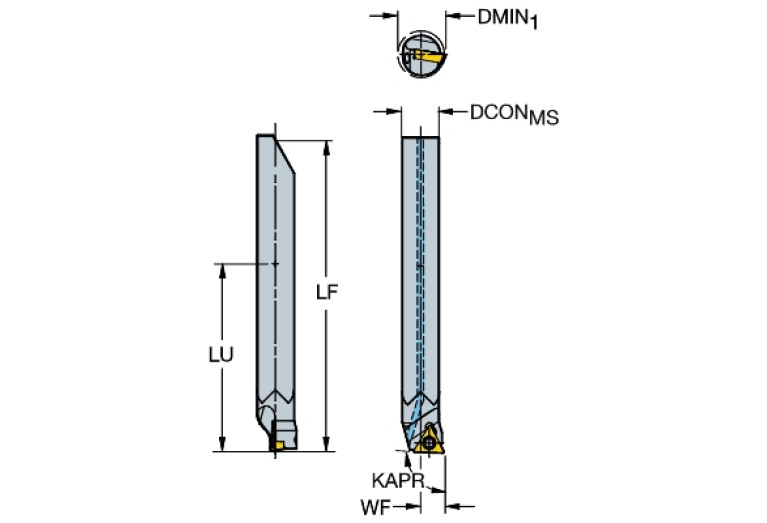

DMIN (Minimum bore diameter)
6 mm
GAMO (Rake angle orthogonal)
0 Degree
HAND (Cutting direction)
R - Right
HF (Functional height)
0 mm
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A (Indicator for ISO cutting plate Pos.A)
1
ISO
ZYL54F6000$$$$
ISO CSW1
ISO$TC0501003L*****
KAPR (Tool cutting edge angle)
92 Degree
LAMS (Inclination angle)
0 Degree
LB (Body length)
30 mm
LF (Functional length)
49.9 mm
LH (Head length)
30 mm
LOC-03 ISO
ZYL54F6000$$$$
LOC-03 (CCFMS Connection code form)
54
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
1 Metric with coolant
LOC-03 (CZCMS Connection size code)
0060
LOC-03 (DCONMS Diameter)
6 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00605415
LPR (Protruding length)
31 mm
LSC (Clamping length)
19.25 mm
MIID (Master insert identification)
TCEX050100L-F

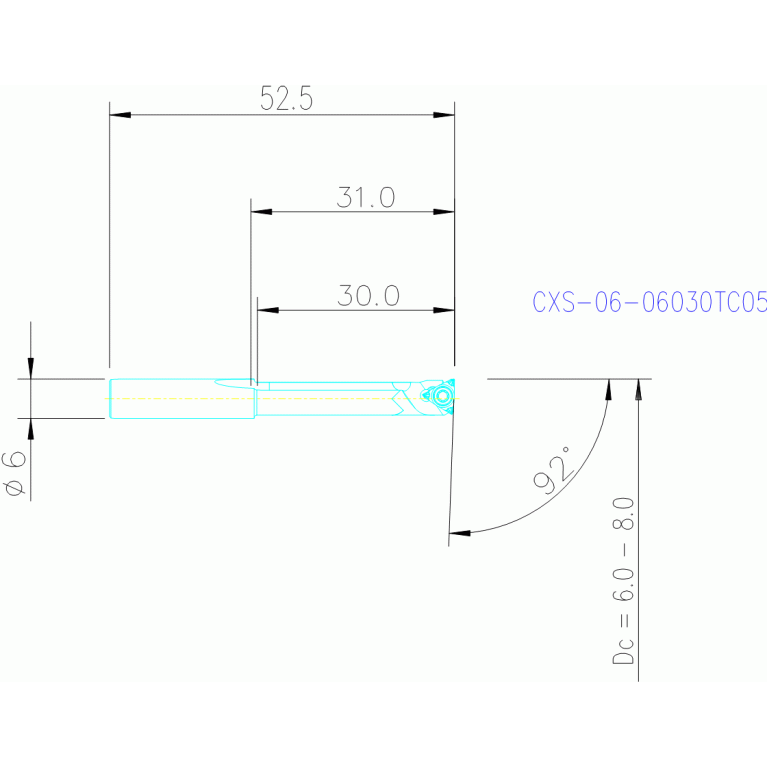

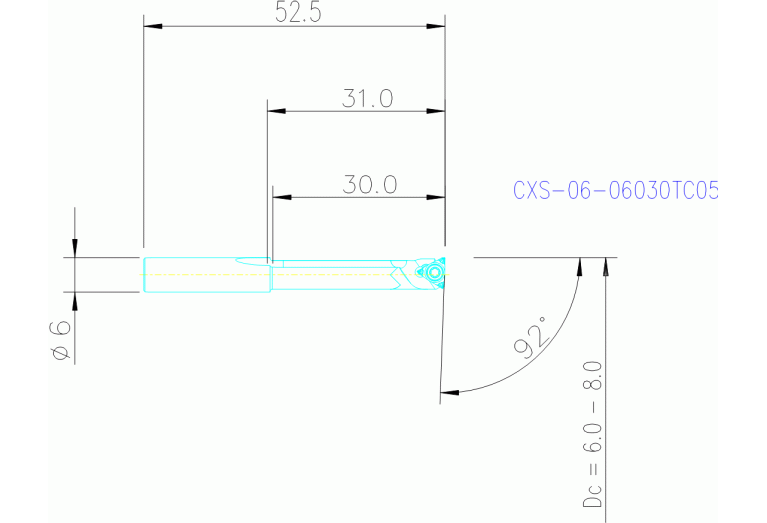

OAL (Overall length)
52.5 mm
WF (Functional width)
3 mm
Working process
BAB - Open by boring
WT (Weight of item)
0.028 kg
