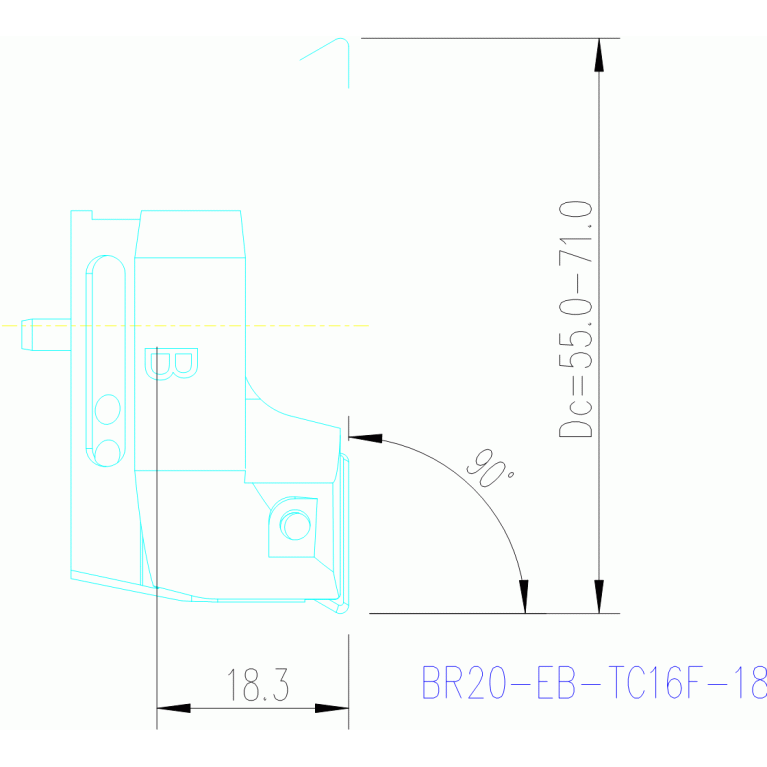

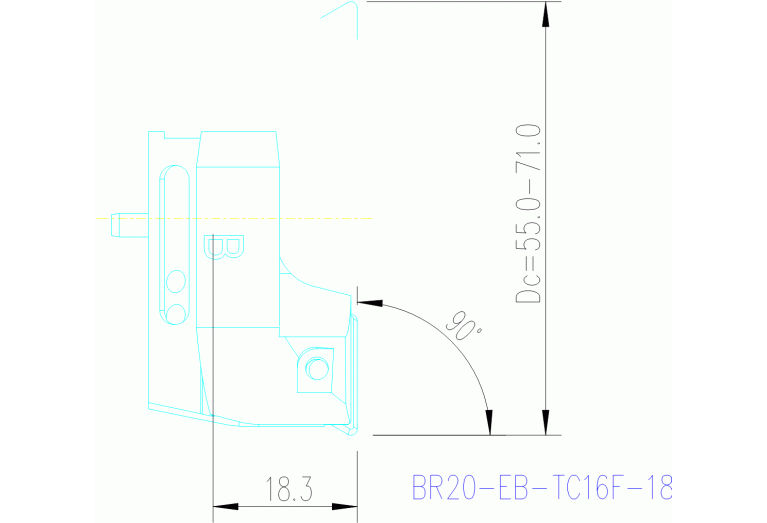

BR20-EB-TC16F-18
BR20-EB-TC16F-18
Артикул:
7591827
В наличии
0 ₽
Характеристики
A2A (Clearance angle major Pos. A)
7 Degree
BLDA (Tool style code Position A)
1
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
3.97 mm
D1A (Corner radius Pos. A)
0.794 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
CDB0EB20395
DIN CSW1
TC16T3993L
DMIN (Minimum bore diameter)
55 mm
EPSR (Insert included angle)
60 Degree
GAMO (Rake angle orthogonal)
0 Degree
HAND (Cutting direction)
R - Right
HF (Functional height)
12.1 mm
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A (Indicator for ISO cutting plate Pos.A)
1
ISO
CDB03C0EB2$$$$
ISO CSW1
ISO$TC16T3003L*****
KAPR (Tool cutting edge angle)
90 Degree
LAMS (Inclination angle)
-2 Degree
LF (Functional length)
18.3 mm
LOC-03 ISO
CDB03C0EB2$$$$
LOC-03 (B Shank width)
8.2 mm
LOC-03 (CCFMS Connection code form)
03
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
CDB Coromant DuoBore SANDVIK
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
0EB2
LOC-03 (H Shank height)
6 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CDB0EB20395
MIID (Master insert identification)
TCMT16T308

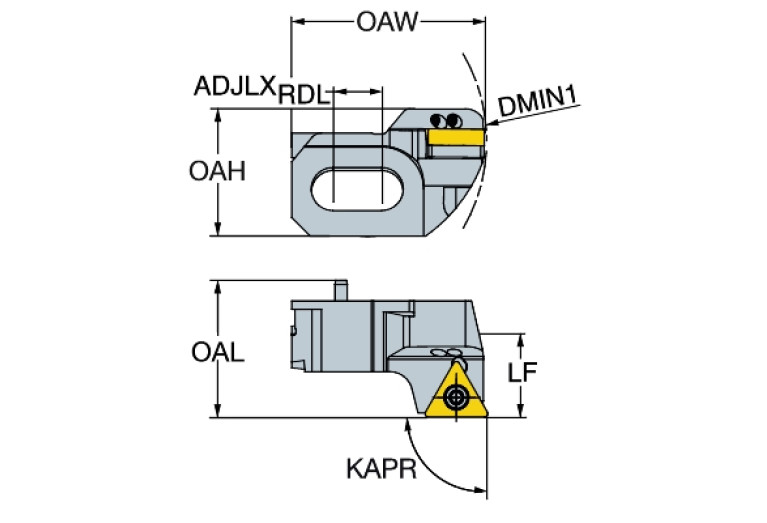

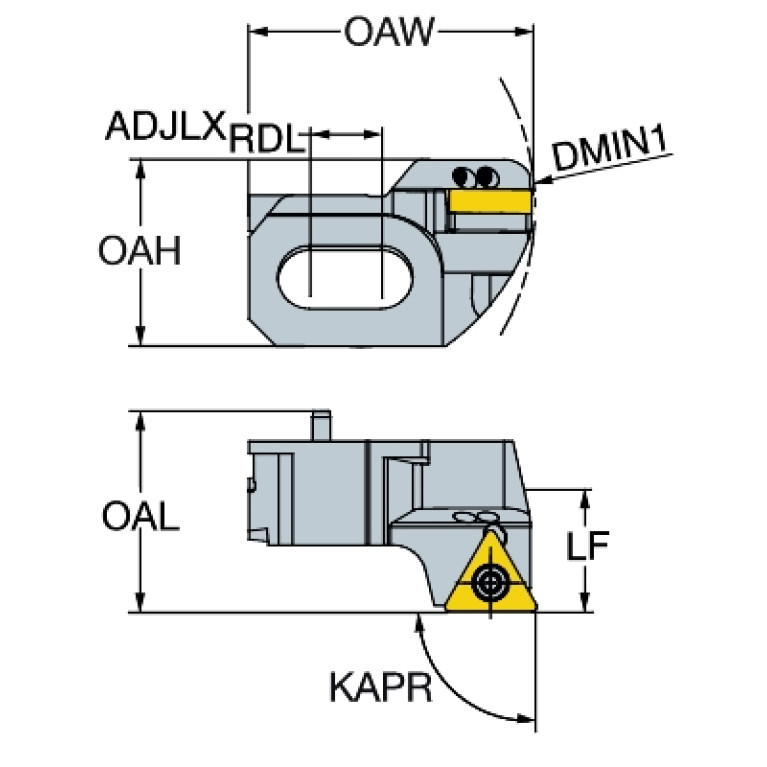

OAH (Overall height)
26.8 mm
OAL (Overall length)
31.5 mm
OAW (Overall width)
38.2 mm
WF (Functional width)
21.25 mm
Working process
BAB - Open by boring
WT (Weight of item)
0.08 kg
