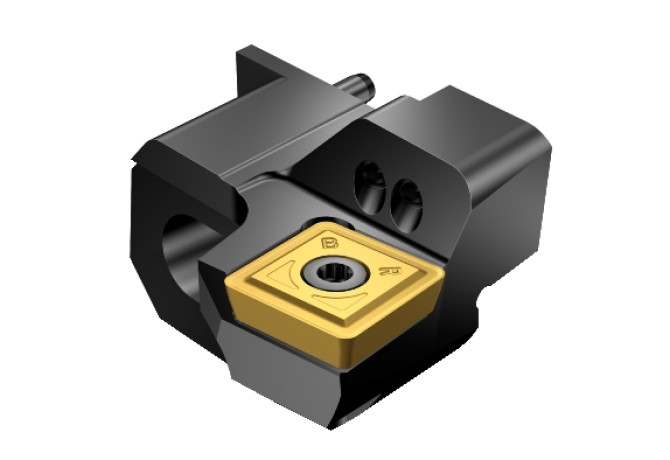

Главная Инструменты 314-00 - Cartridge for indexable insert unspecified BR20-BA-SP06Y-11

BR20-BA-SP06Y-11

Артикул: 7216840

В наличии

0 ₽

В корзину

Описание

Характеристики

BLDA (Tool style code Position A)

BMC (Body material code)

S - Solid steel

D1A (Corner radius Pos. A)

0.6 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

CDB0BA20395

DIN CSW1

SV-TM060300

DMIN (Minimum bore diameter)

28 mm

EPSR (Insert included angle)

90 Degree

GAMO (Rake angle orthogonal)

5 Degree

HAND (Cutting direction)

R - Right

HF (Functional height)

6.7 mm

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

CDB03C0BA2$$$$

ISO CSW1

SV$$TM0603$$3**$$$$

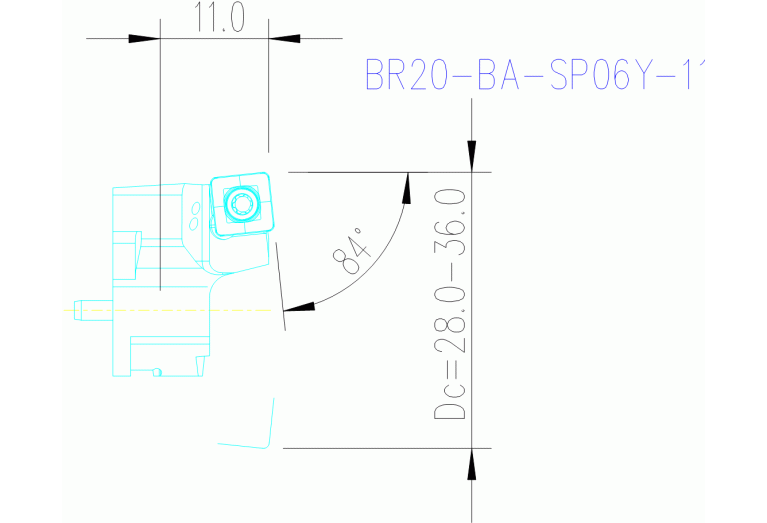

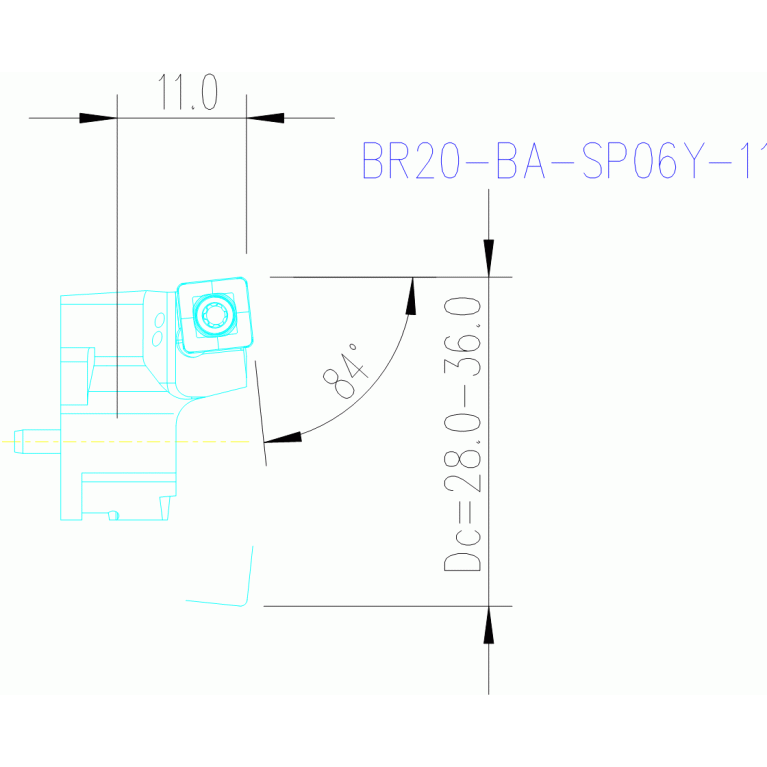

KAPR (Tool cutting edge angle)

84 Degree

LAMS (Inclination angle)

-4 Degree

LF (Functional length)

11 mm

LOC-03 ISO

CDB03C0BA2$$$$

LOC-03 (B Shank width)

4.8 mm

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CDB Coromant DuoBore SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0BA2

LOC-03 (H Shank height)

3.5 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CDB0BA20395

MIID (Master insert identification)

SPMT0606-BM

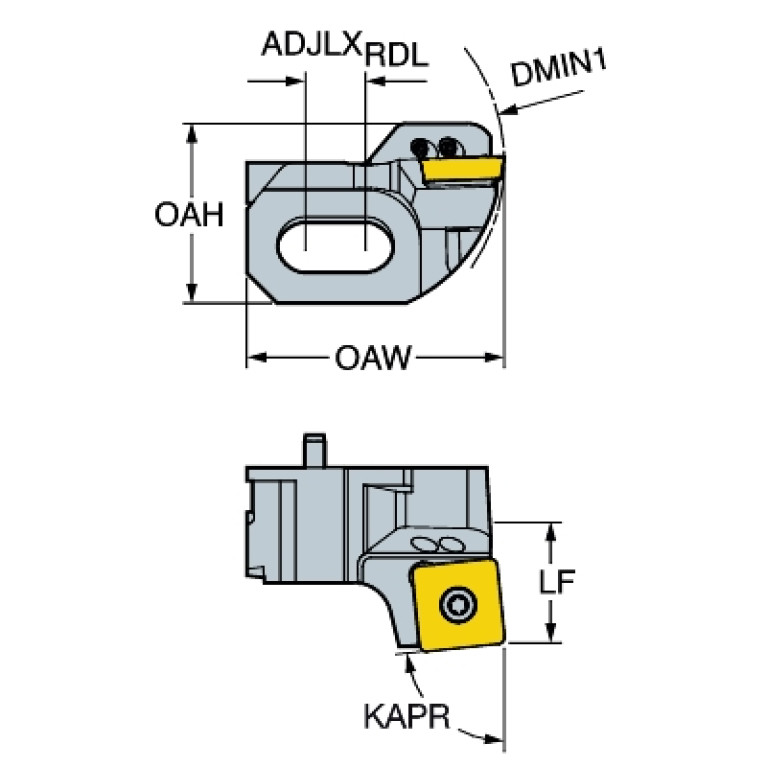

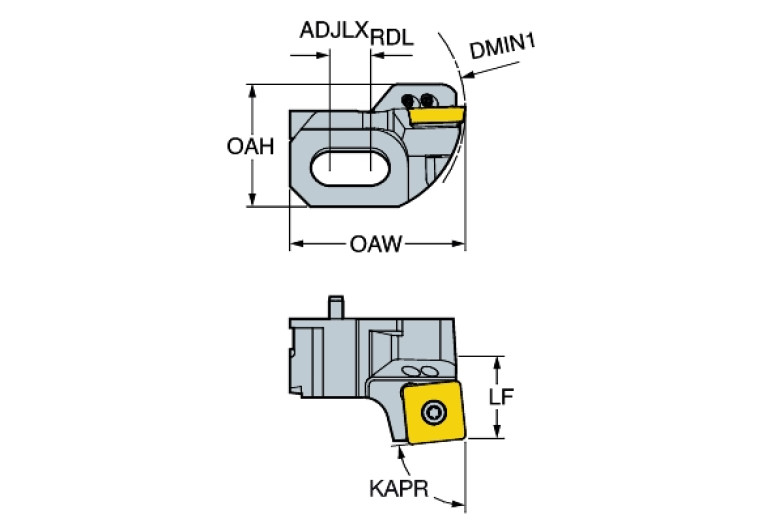

OAH (Overall height)

14 mm

OAL (Overall length)

20.4 mm

OAW (Overall width)

20.6 mm

WF (Functional width)

11.45 mm

Working process

BAB - Open by boring

WT (Weight of item)

0.02 kg
