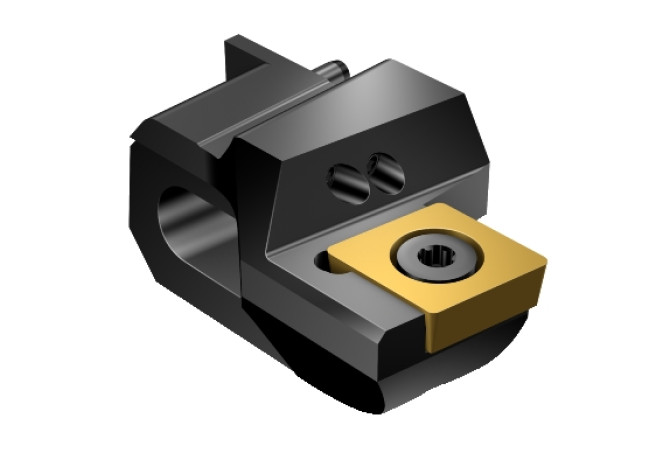

Главная Инструменты 314-00 - Cartridge for indexable insert unspecified BR10-AA-CC06F-00

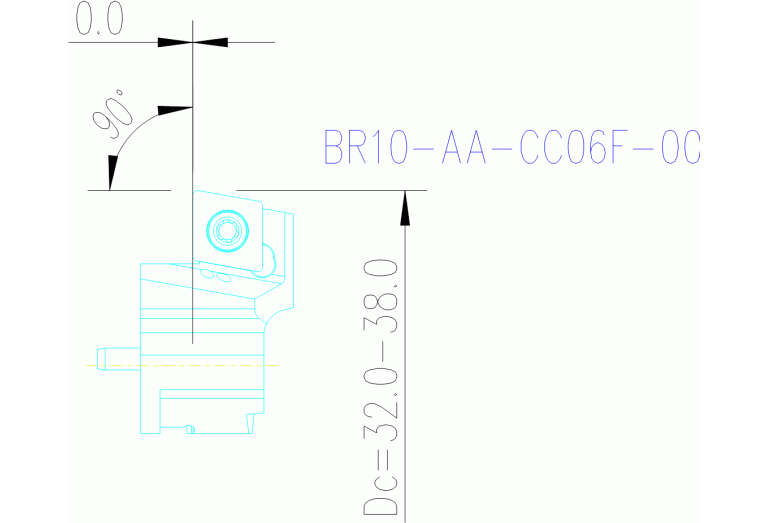

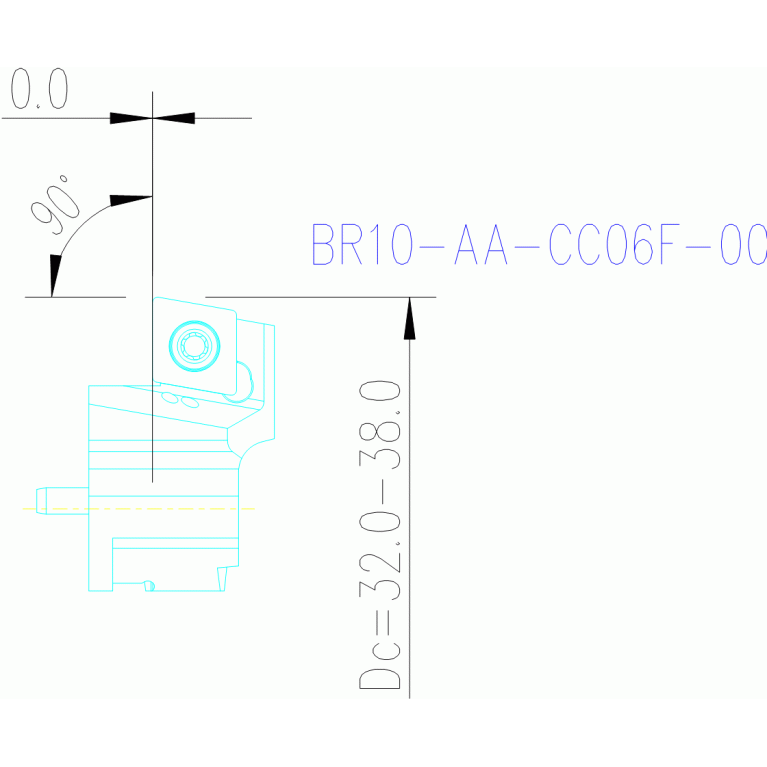

BR10-AA-CC06F-00

Артикул: 7216955

В наличии

0 ₽

В корзину

Описание

Характеристики

A2A (Clearance angle major Pos. A)

7 Degree

BLDA (Tool style code Position A)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

2.38 mm

D1A (Corner radius Pos. A)

0.397 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

CDB0AA10395

DIN CSW1

CC0602993R

DMIN (Minimum bore diameter)

32 mm

EPSR (Insert included angle)

80 Degree

GAMO (Rake angle orthogonal)

0 Degree

HAND (Cutting direction)

L - Left

HF (Functional height)

6.26 mm

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A (Indicator for ISO cutting plate Pos.A)

ISO

CDB03C0AA1$$$$

ISO CSW1

ISO$CC0602003R*****

KAPR (Tool cutting edge angle)

90 Degree

LAMS (Inclination angle)

0 Degree

LF (Functional length)

0 mm

LOC-03 ISO

CDB03C0AA1$$$$

LOC-03 (B Shank width)

4.8 mm

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CDB Coromant DuoBore SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0AA1

LOC-03 (H Shank height)

3.5 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CDB0AA10395

LPR (Protruding length)

10 mm

MIID (Master insert identification)

CCMT060204

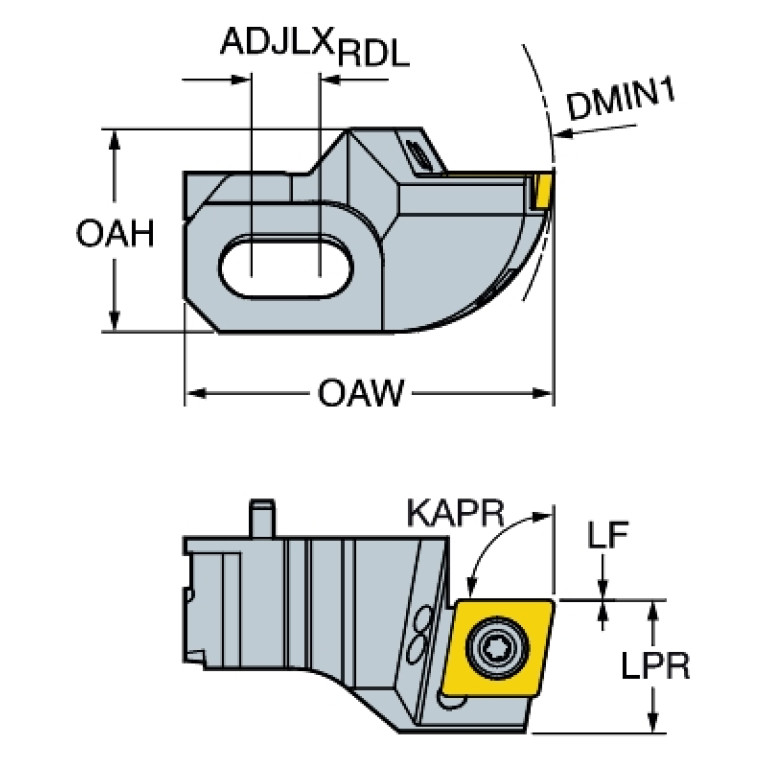

OAH (Overall height)

13 mm

OAL (Overall length)

18 mm

OAW (Overall width)

22.4 mm

WF (Functional width)

14.6 mm

Working process

BAB - Open by boring

WT (Weight of item)

0.01 kg
