Главная Инструменты 314-00 - Cartridge for indexable insert unspecified 391.68A-7-15040T22A

391.68A-7-15040T22A

Артикул: 5759522

В наличии

0 ₽

В корзину

Описание

Характеристики

A2A (Clearance angle major Pos. A)

7 Degree

BLDA (Tool style code Position A)

BMC (Body material code)

S - Solid steel

C1A (Insert thickness Pos. A)

4.76 mm

D1A (Corner radius Pos. A)

0.794 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

CDB08000185

DIN CSW1

TC2204993L

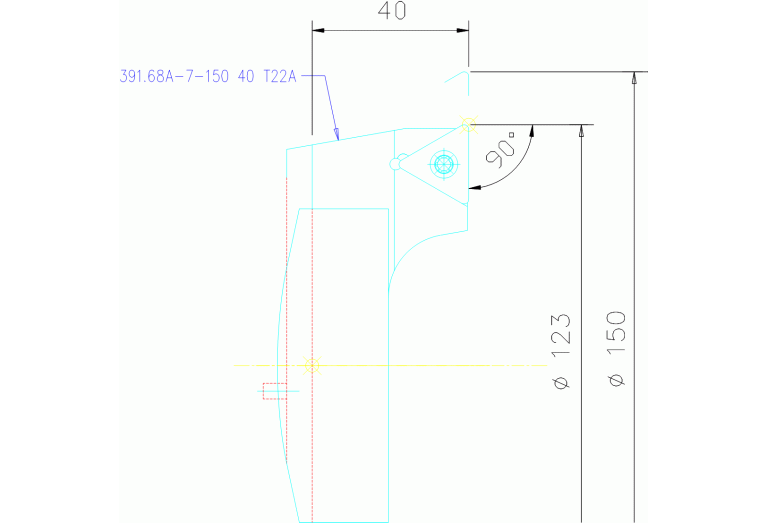

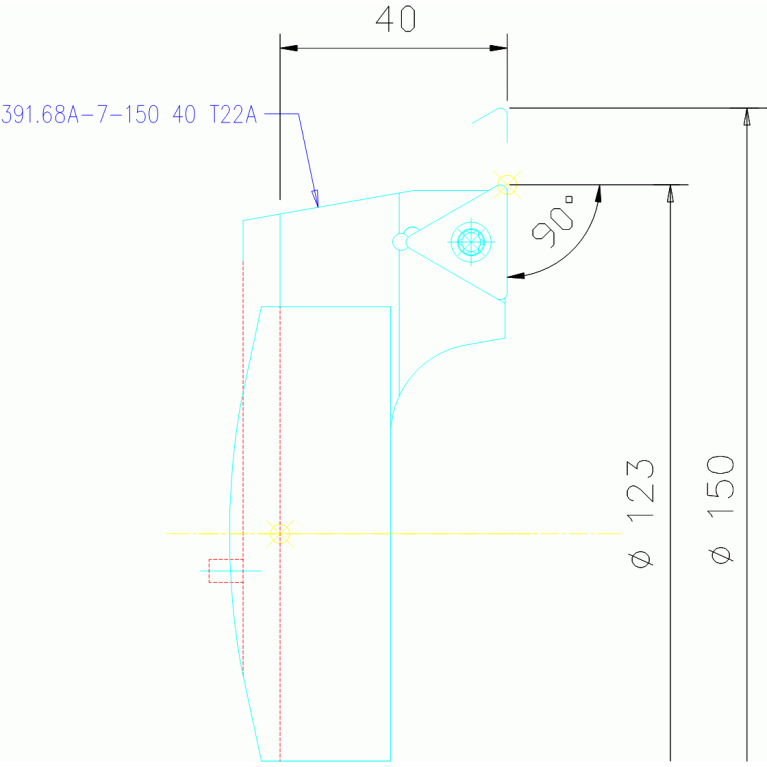

DMIN (Minimum bore diameter)

123 mm

EPSR (Insert included angle)

60 Degree

GAMO (Rake angle orthogonal)

0 Degree

HAND (Cutting direction)

R - Right

HF (Functional height)

19.7 mm

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A (Indicator for ISO cutting plate Pos.A)

ISO

CDB01C0800$$$$

ISO CSW1

ISO$TC2204003L*****

KAPR (Tool cutting edge angle)

90 Degree

LAMS (Inclination angle)

0 Degree

LF (Functional length)

40 mm

LOC-03 ISO

CDB01C0800$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CDB Coromant DuoBore SANDVIK

LOC-03 (CCUMS Connection code unit base)

8 non-dimensional size

LOC-03 (CZCMS Connection size code)

0800

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CDB08000185

MIID (Master insert identification)

TCMT220408

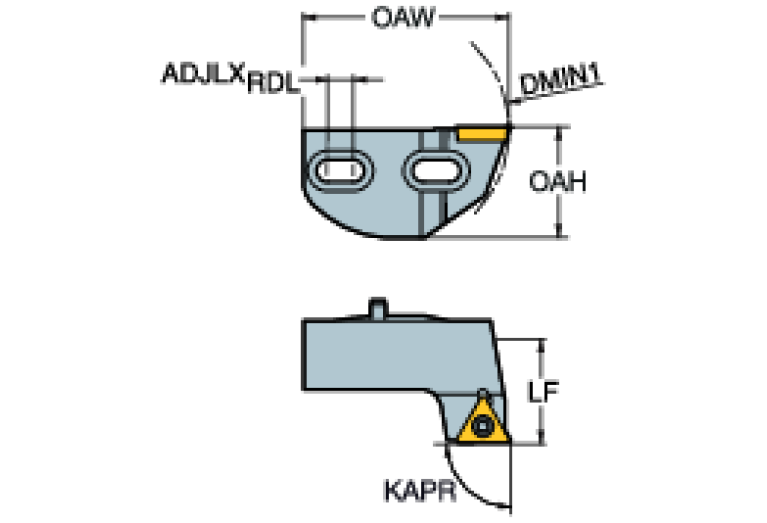

OAH (Overall height)

40.7 mm

OAL (Overall length)

52.5 mm

OAW (Overall width)

101.5 mm

WF (Functional width)

36.5 mm

Working process

BAB - Open by boring

WT (Weight of item)

0.687 kg
