Главная Инструменты 314-00 - Cartridge for indexable insert unspecified 391.68A-3-04716T11B

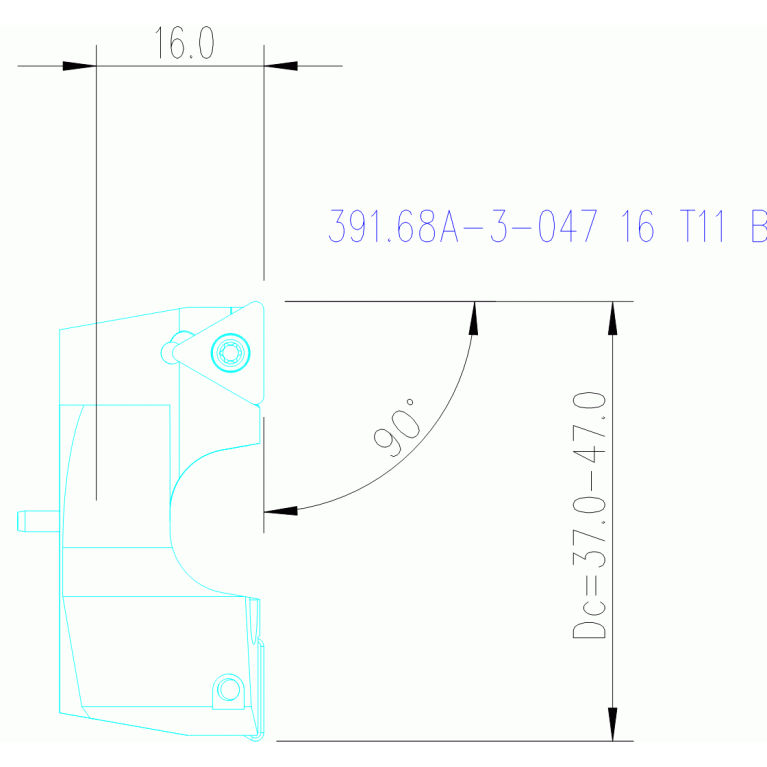

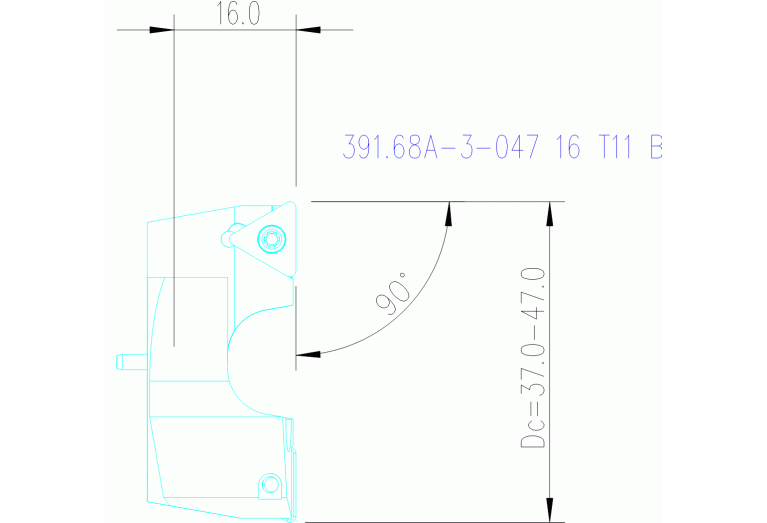

391.68A-3-04716T11B

391.68A-3-04716T11B 391.68A-3-04716T11B 391.68A-3-04716T11B 391.68A-3-04716T11B

391.68A-3-04716T11B

SV - Sandvik-Coromant
Артикул: 5759670
В наличии
0 ₽
В корзину
Описание
Характеристики
A2A (Clearance angle major Pos. A)
7 Degree
BLDA (Tool style code Position A)
1
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
2.38 mm
D1A (Corner radius Pos. A)
0.794 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
LA - Soon discontinued
Delivery state valid from
12/1/2023
DIN
CDB03200185
DIN CSW1
TC1102993L
DMIN (Minimum bore diameter)
37 mm
EPSR (Insert included angle)
60 Degree
GAMO (Rake angle orthogonal)
0 Degree
HAND (Cutting direction)
R - Right
HF (Functional height)
7.2 mm
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A (Indicator for ISO cutting plate Pos.A)
1
ISO
CDB01C0320$$$$
ISO CSW1
ISO$TC1102003L*****
KAPR (Tool cutting edge angle)
90 Degree
LAMS (Inclination angle)
0 Degree
LF (Functional length)
16 mm
LOC-03 ISO
CDB01C0320$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
CDB Coromant DuoBore SANDVIK
LOC-03 (CCUMS Connection code unit base)
8 non-dimensional size
LOC-03 (CZCMS Connection size code)
0320
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CDB03200185
MIID (Master insert identification)
TCMT110208

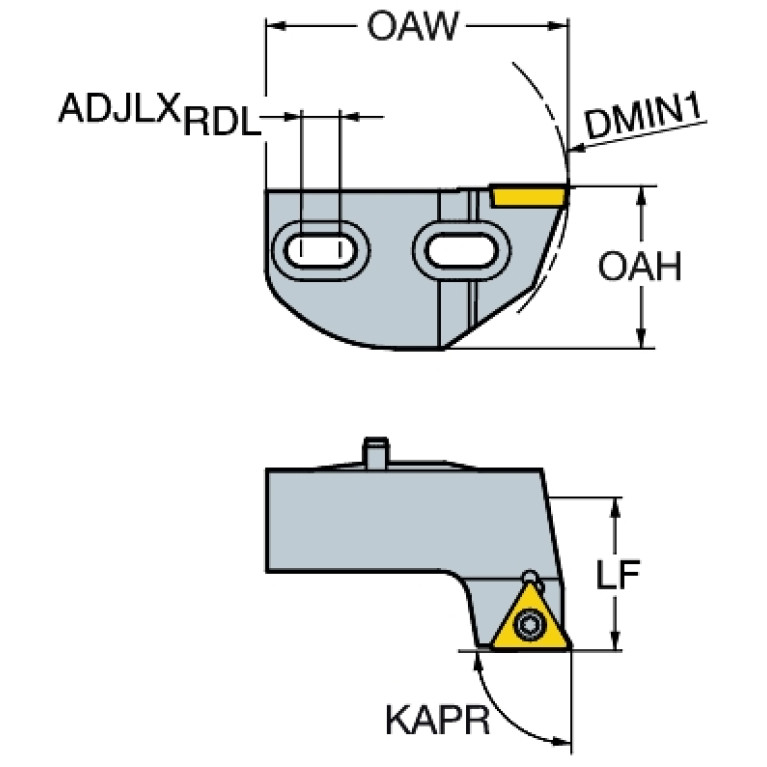

OAH (Overall height)
16.7 mm
OAL (Overall length)
23.5 mm
OAW (Overall width)
32.1 mm
WF (Functional width)
13.5 mm
Working process
BAB - Open by boring
WT (Weight of item)
0.048 kg
