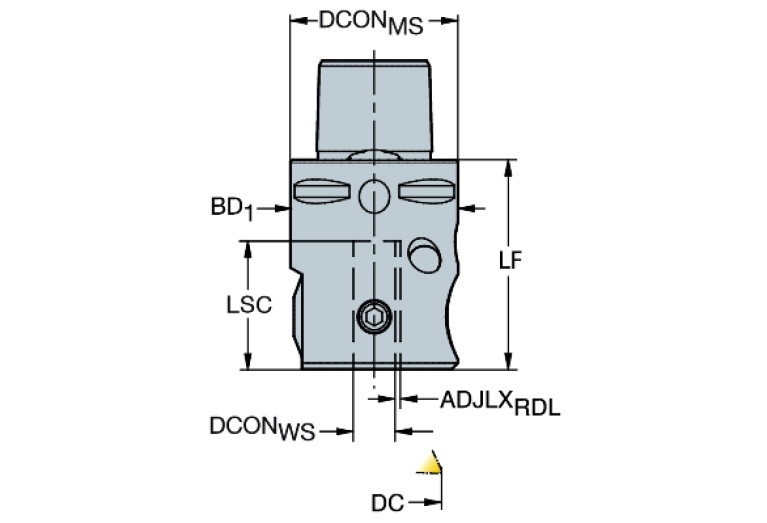

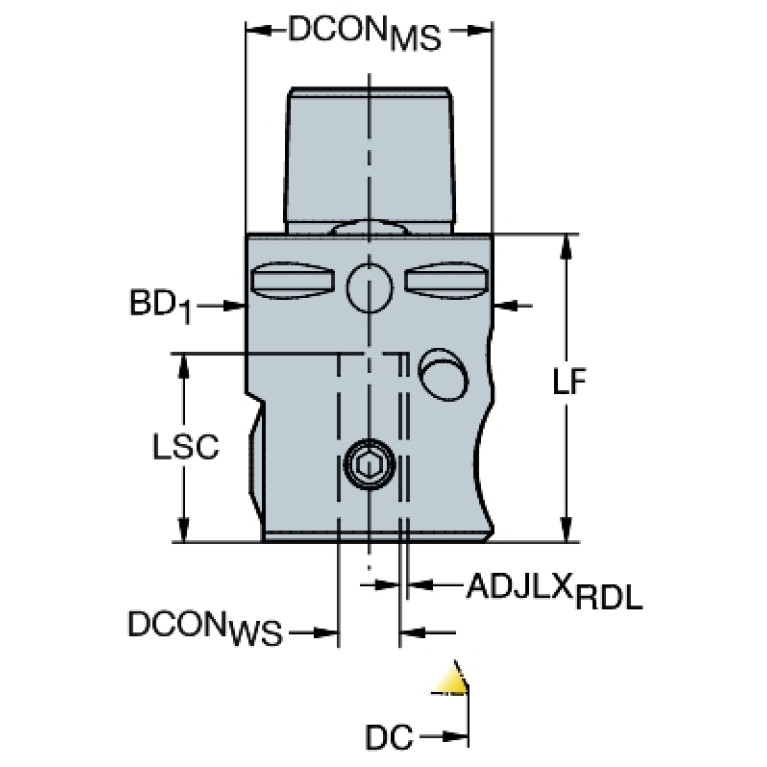

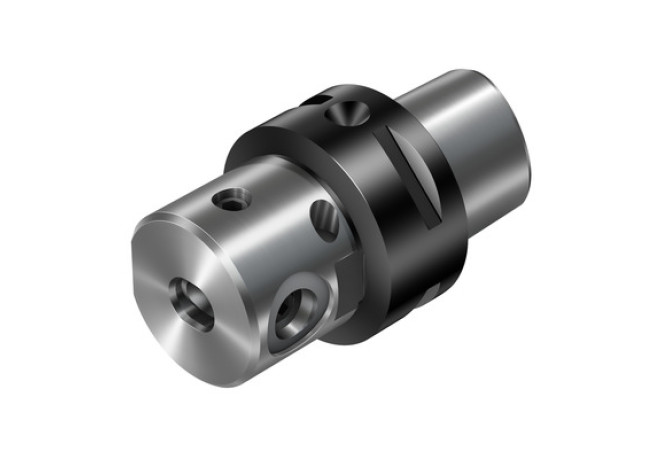

Главная Инструменты 305-08 - Boring head for adjustable units C4-R824XS10-017

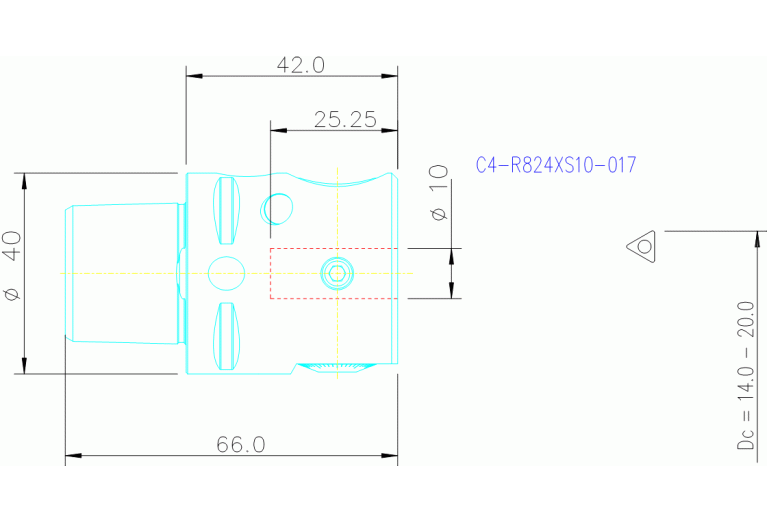

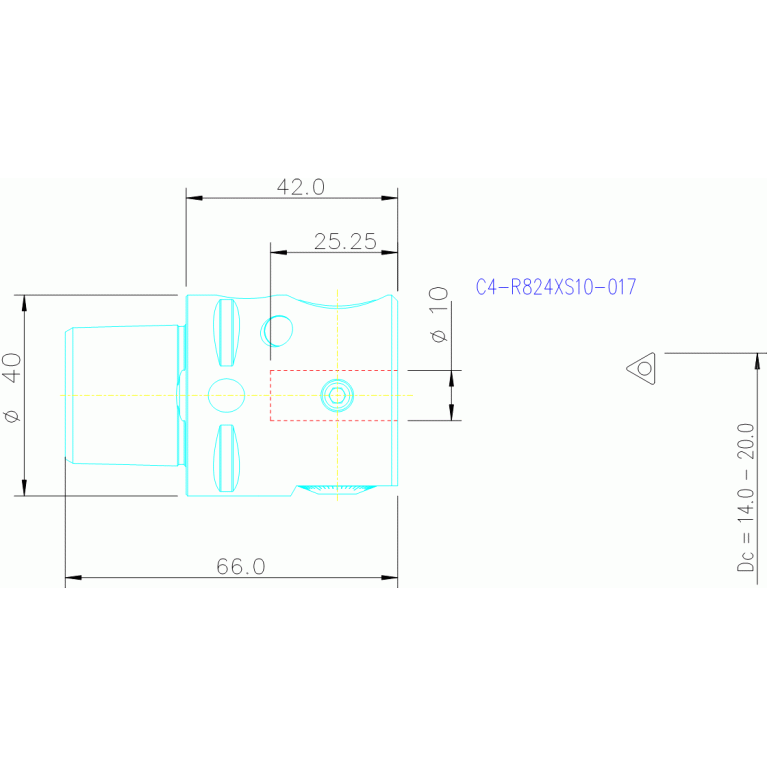

C4-R824XS10-017

Артикул: 6424093

В наличии

0 ₽

В корзину

Описание

Характеристики

ADJBY (Adjustment property)

1 - Radial adjustment possible

ADJIN (Adjustment increment axial)

0.001 mm

ADJRGA (Adjustment range axial)

1.5 mm

BMC (Body material code)

S - Solid steel

CNSC (Coolant entry style code)

3 - With Coolant entry, axial concentric and radial

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

Delivery state valid from

12/1/2023

DIN

CCS04000195

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

CCS01C0400$$$$

LB (Body length)

42 mm

LOC-01 ISO

ZYL54G1000****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL01005415

LOC-02 ISO

ZYL54R3937****

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

ZYL03935435

LOC-03 ISO

CCS01C0400$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0400

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS04000195

Working process

BAB - Open by boring

WT (Weight of item)

0.451 kg
