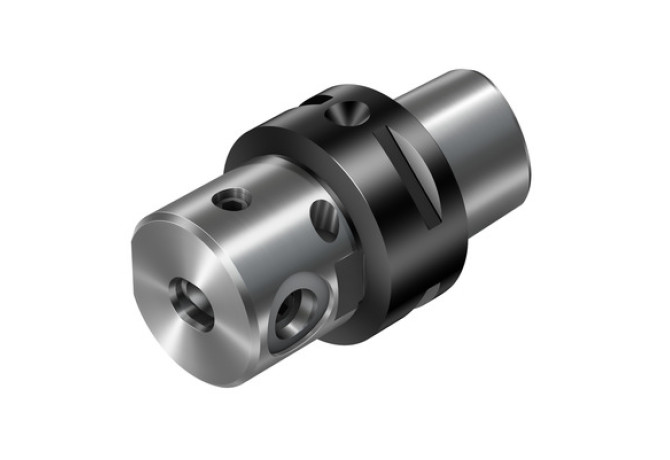

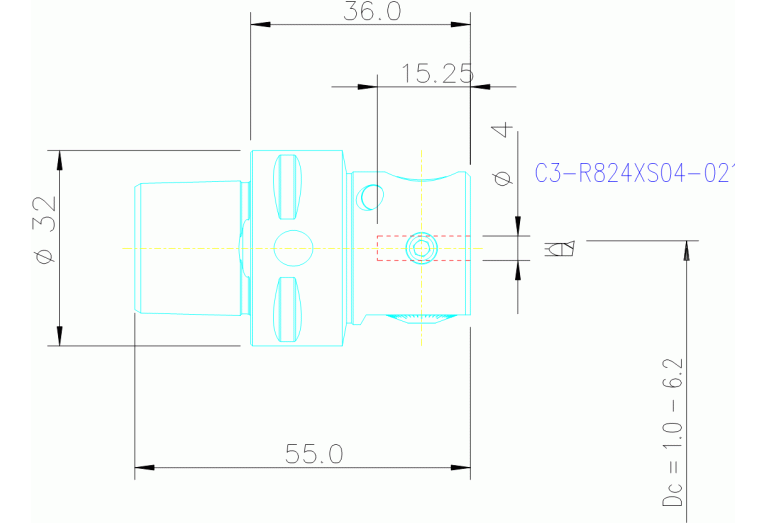

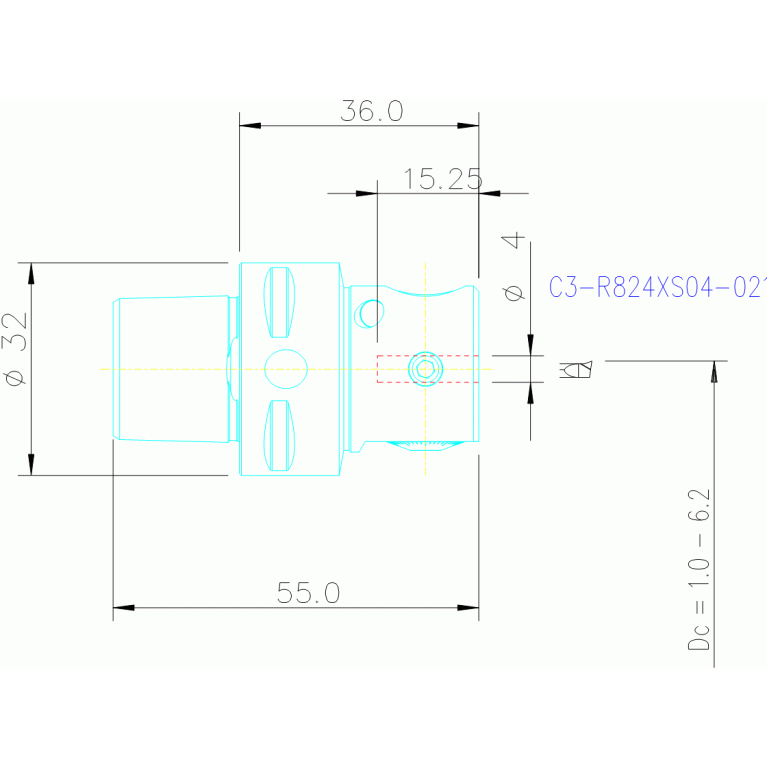

C3-R824XS04-021
C3-R824XS04-021
Артикул:
6424090
В наличии
0 ₽
Характеристики
ADJBY (Adjustment property)
1 - Radial adjustment possible
ADJIN (Adjustment increment axial)
0.001 mm
ADJRGA (Adjustment range axial)
1 mm
BMC (Body material code)
S - Solid steel
CNSC (Coolant entry style code)
3 - With Coolant entry, axial concentric and radial
CXSC (Coolant exit style code)
1 - With Coolant exit, axial concentric
CXSC (Coolant exit style code) / Тип подвода СОЖ
1 - With Coolant exit, axial concentric
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
CCS03200195
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
CCS01C0320$$$$
LB (Body length)
21 mm
LOC-01 ISO
ZYL54F4000****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL00405415
LOC-02 ISO
ZYL54R1574****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
ZYL01575435
LOC-03 ISO
CCS01C0320$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
CCS Coromant Capto System SANDVIK
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
0320
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS03200195
Working process
BAB - Open by boring
WT (Weight of item)
0.213 kg
