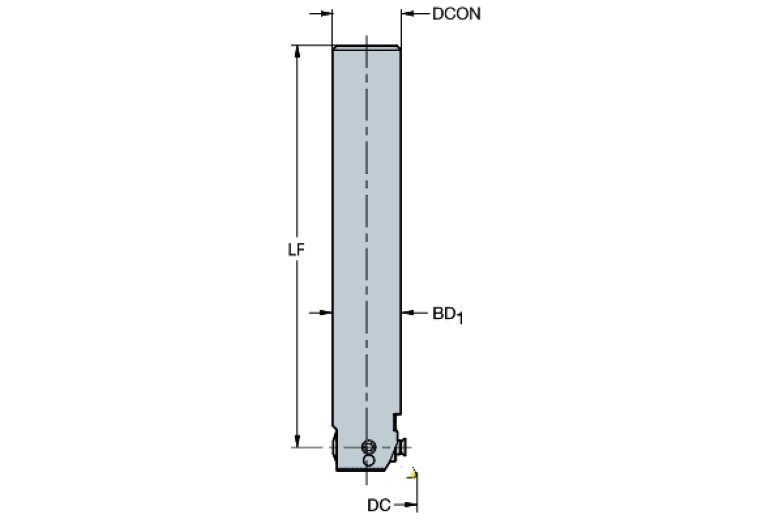

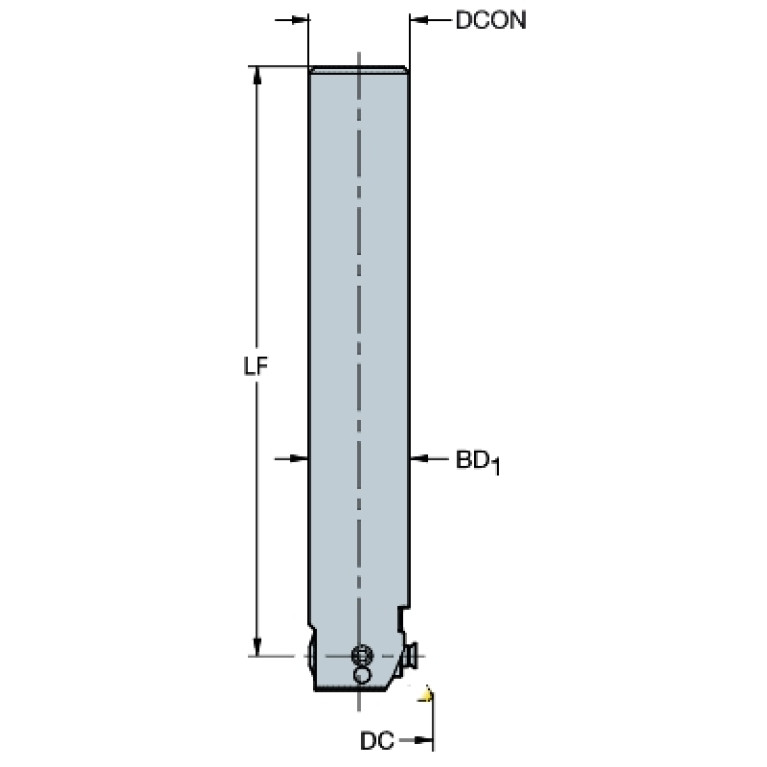

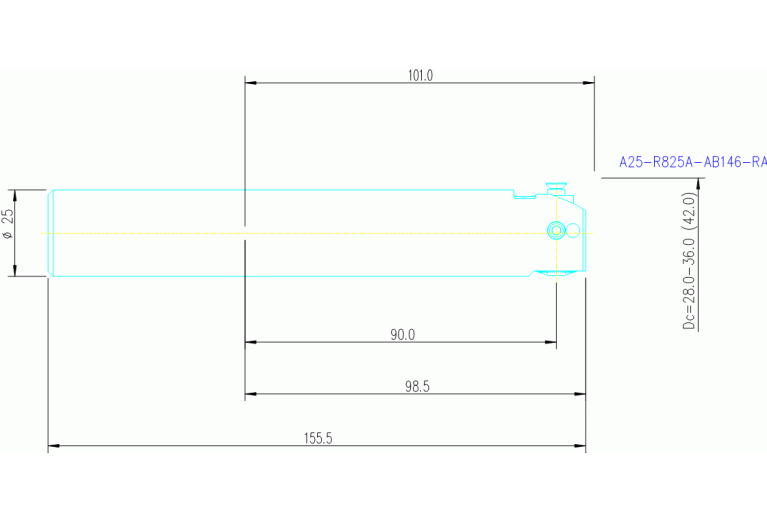

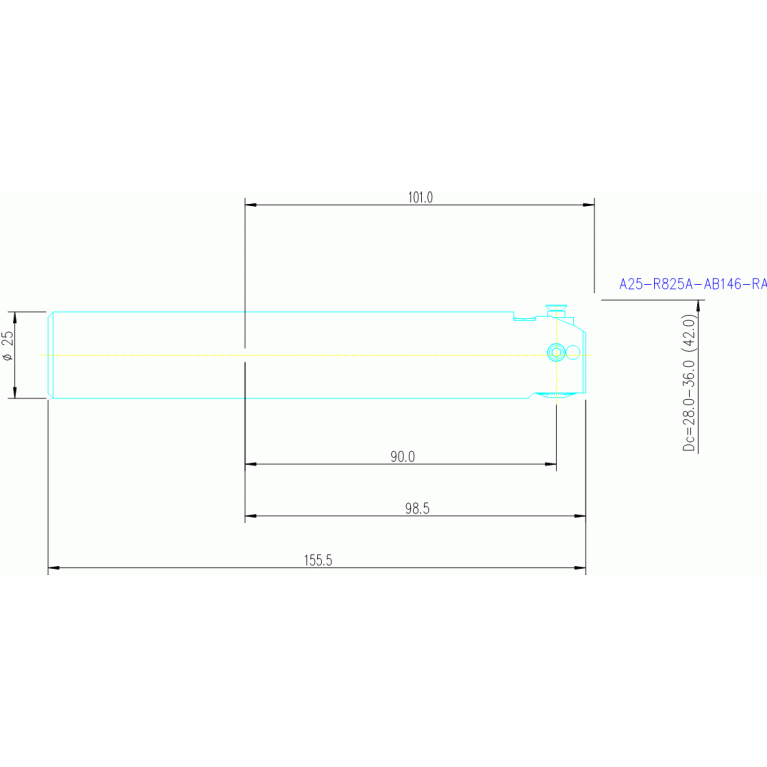

Главная Инструменты 305-08 - Boring head for adjustable units A25-R825A-AB146-RA

A25-R825A-AB146-RA

Артикул: 5722455

В наличии

0 ₽

В корзину

Описание

Характеристики

ADJBY (Adjustment property)

1 - Radial adjustment possible

ADJIN (Adjustment increment axial)

0.001 mm

ADJRGA (Adjustment range axial)

4 mm

BMC (Body material code)

S - Solid steel

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

Delivery state valid from

12/1/2023

DIN

ZYL02500115

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL01G2500$$$$

LB (Body length)

134 mm

LOC-01 ISO

CCB02C0010****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

CCB00100295

LOC-03 ISO

ZYL01G2500$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

0250

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02500115

Working process

BAB - Open by boring

WT (Weight of item)

0.57 kg
