Главная Каталог продукции Toolunited 10 309-07 - System tool for external turning C8-DDJNL-55080-15-04

C8-DDJNL-55080-15-04

C8-DDJNL-55080-15-04 C8-DDJNL-55080-15-04 C8-DDJNL-55080-15-04

C8-DDJNL-55080-15-04

Seco
Артикул: 02642326
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
B3A Inscribed circle diameter Pos. A
12.7 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
4.76 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.4 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
CCS08000185
DMIN Minimum bore diameter
110 mm
EPSR Insert included angle
55 Degree
FamilyProducts
C8-DDJNL-55080-15-04
GAMO Rake angle orthogonal
-6 Degree
HAND Cutting direction
L - Left
ID Technical product number
02642326
Interface codes
J6 / J61
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
CCS01C0800$$$$
ISO CSW1
ISO$DN1504**2LB****
ISYC Subclass
309-07 - System tool for external turning

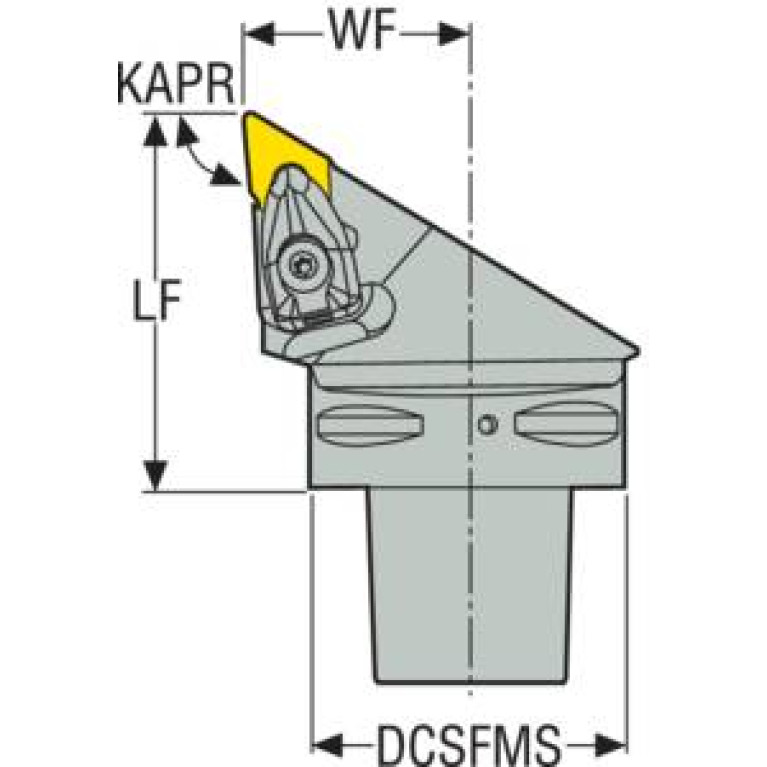

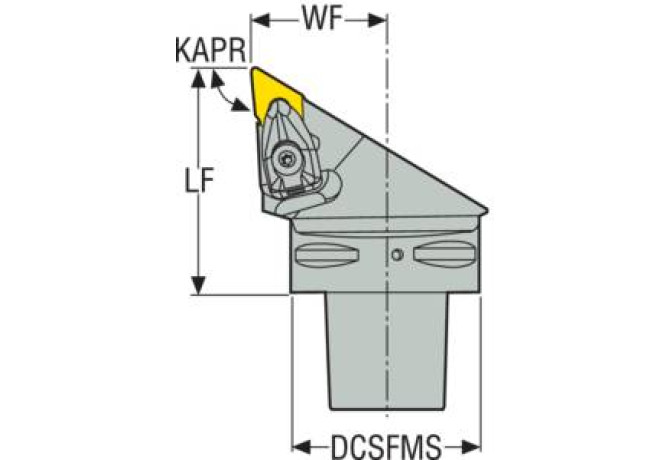

KAPR Tool cutting edge angle
93 Degree
LAMS Inclination angle
-7 Degree

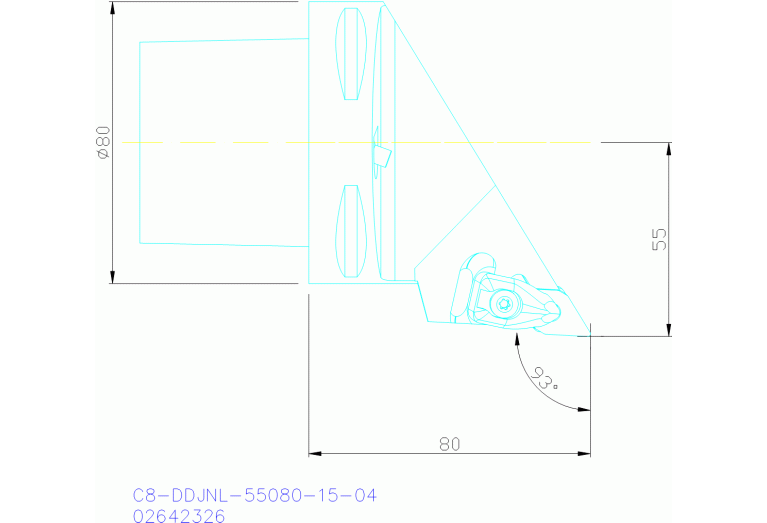

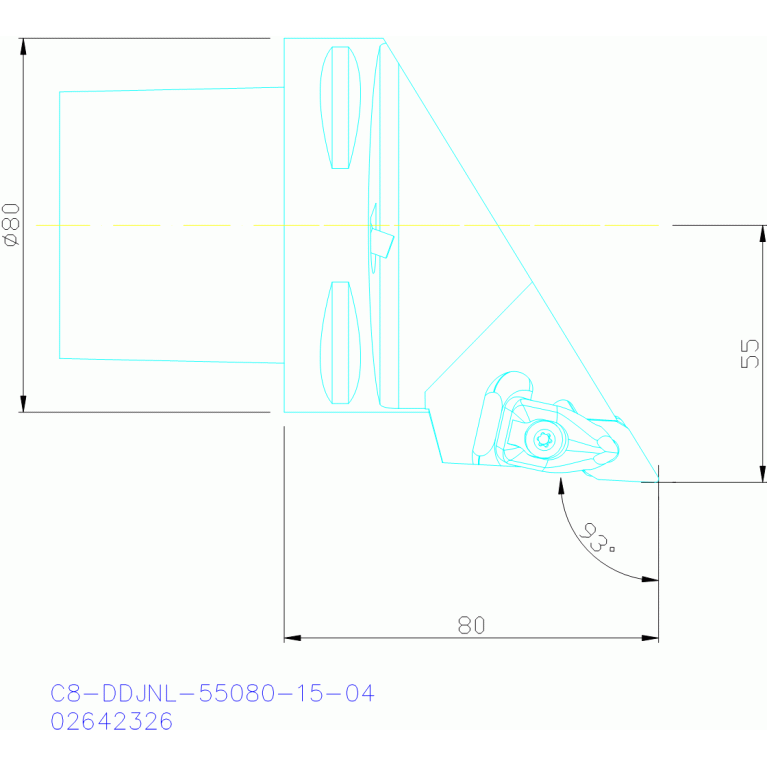

LF Functional length
80 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0800
LOC-03 ISO
CCS01C0800$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS08000185
LTA Length tool assembly
80 mm
MIID Master insert identification
DNGA150404S-01020-L1-B
MTP Clamping type code
D
Name Identifying order number
C8-DDJNL-55080-15-04
STDDES Standard designation
C8-DDJNL-55080-15-04
WF Functional width
55 mm
Working process
No working processes available
WT Weight of item
2.34 kg
