Главная Каталог продукции Toolunited 10 309-07 - System tool for external turning C8-PSDNN-00080-25

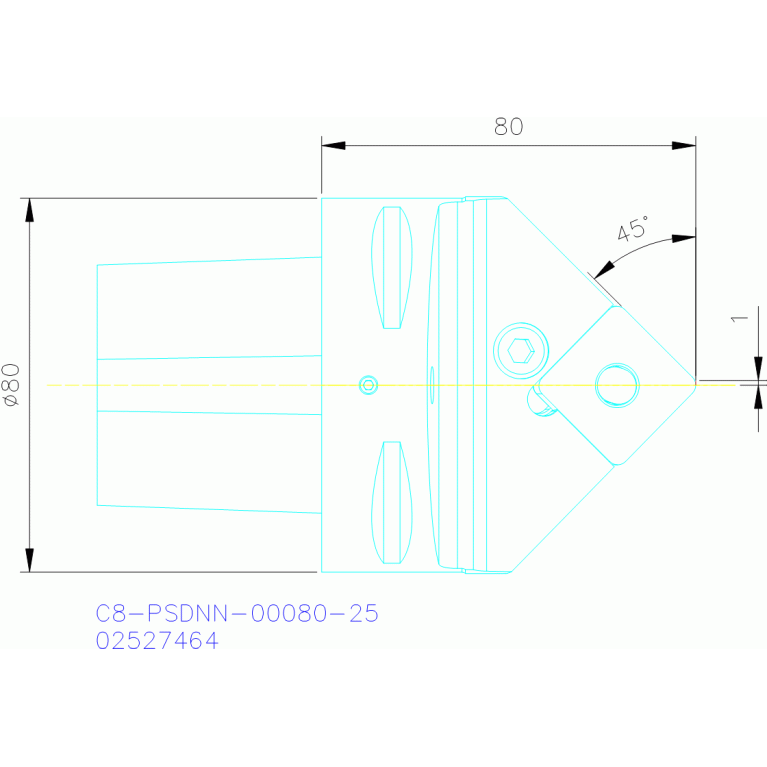

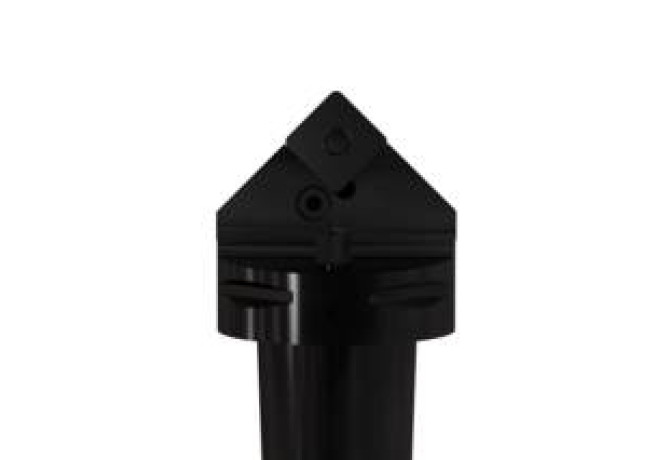

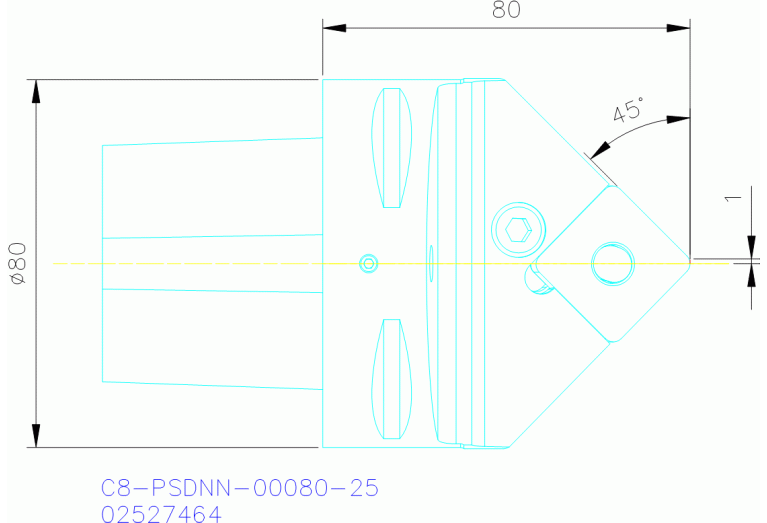

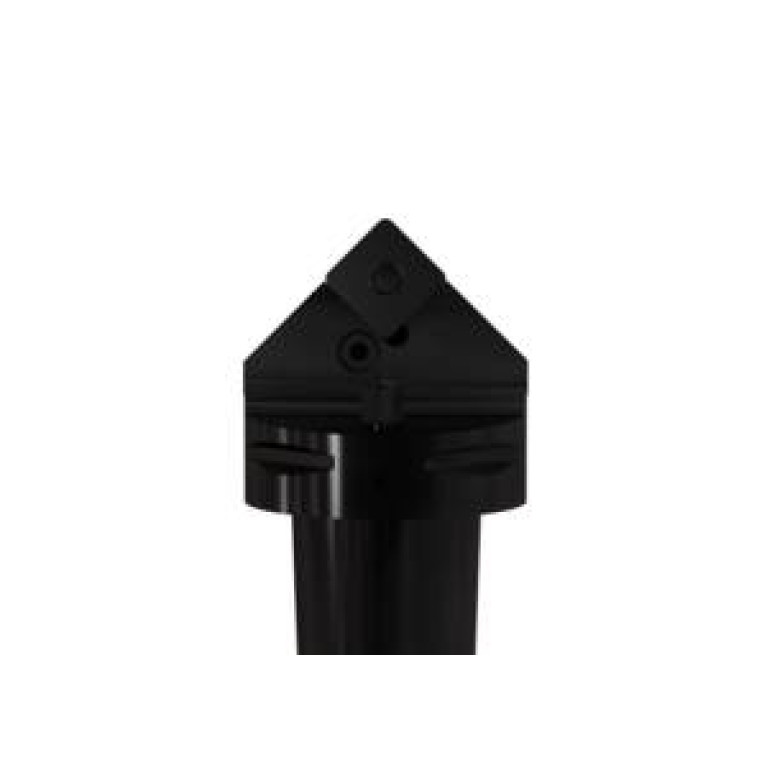

C8-PSDNN-00080-25

C8-PSDNN-00080-25

C8-PSDNN-00080-25

C8-PSDNN-00080-25

C8-PSDNN-00080-25

C8-PSDNN-00080-25

C8-PSDNN-00080-25

Seco

Артикул: 02527464

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

25.4 mm

BLDA Tool style code Position A

2

C1A Insert thickness Pos. A

7.94 mm

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

2.381 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

CCS08000185

DMIN Minimum bore diameter

200 mm

EPSR Insert included angle

90 Degree

FamilyProducts

C8-PSDNN-00080-25

GAMF Rake angle radial

-6 Degree

GAMO Rake angle orthogonal

-6 Degree

GAMP Rake angle axial

-6 Degree

HAND Cutting direction

N - Neutral

HF Functional height

0 mm

ID Technical product number

02527464

Interface codes

J6 / J61

Interface codes CSW1

/ J441

ISISO A Indicator for ISO cutting plate Pos.A

0

ISO

CCS01C0800$$$$

ISO CSW1

ISO$SN2507**2NB****

ISYC Subclass

309-07 - System tool for external turning

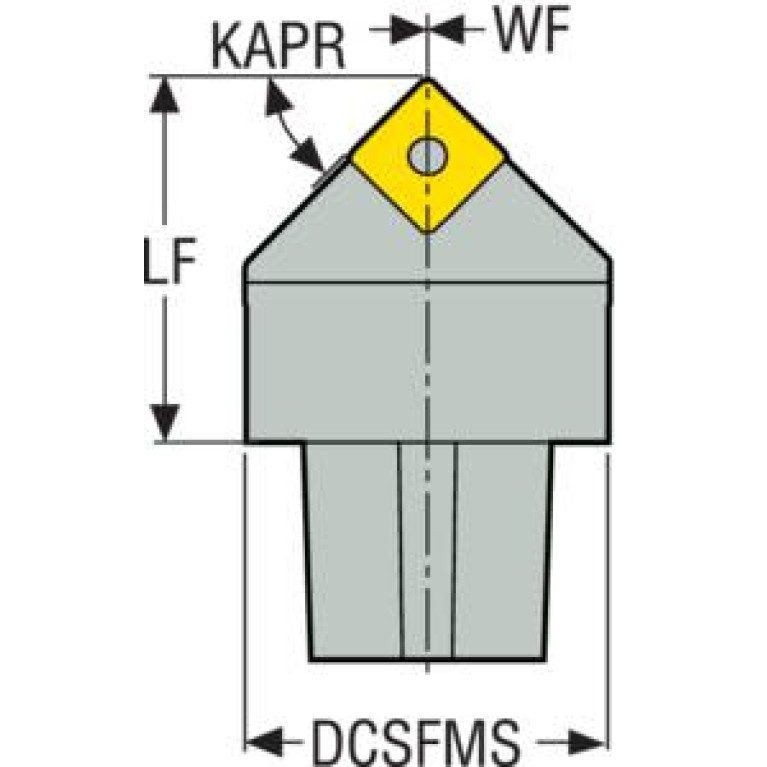

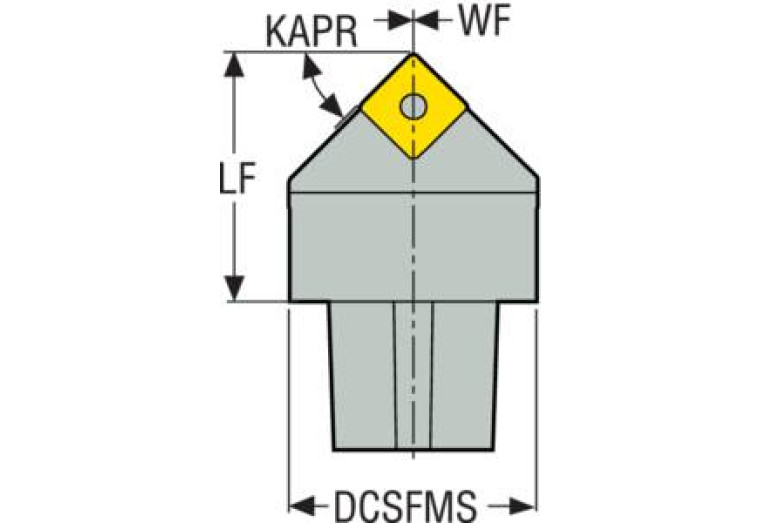

KAPR Tool cutting edge angle

45 Degree

LAMS Inclination angle

-6 Degree

LF Functional length

80 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0800

LOC-03 ISO

CCS01C0800$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS08000185

LTA Length tool assembly

80 mm

MIID Master insert identification

SNMM250724-R57

MTP Clamping type code

P - Hole clamping, with straight bore

Name Identifying order number

C8-PSDNN-00080-25

STDDES Standard designation

C8-PSDNN-00080-25

WF Functional width

1 mm

Working process

No working processes available

WT Weight of item

2.2 kg
