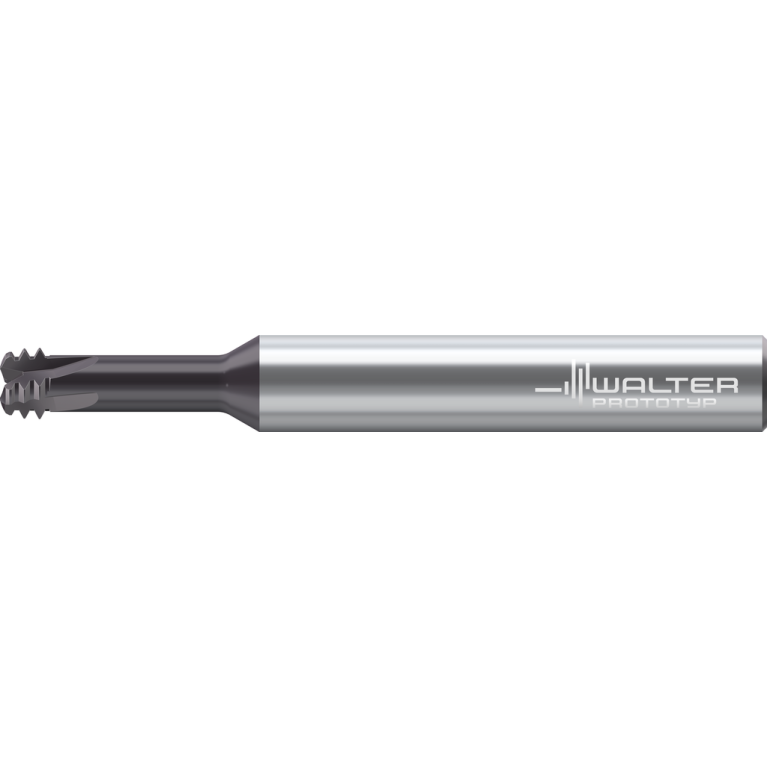

TC685-UNC3/4-A1E-WB10RC

TC685-UNC3/4-A1E-WB10RC TC685-UNC3/4-A1E-WB10RC TC685-UNC3/4-A1E-WB10RC

TC685-UNC3/4-A1E-WB10RC

Walter
Артикул: 7848969
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
7.95 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating / Покрытие
TiAlN
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
13.9 mm
Delivery state valid from
12/1/2023
DIN
ZYL01600115
DN Neck diameter
10.81 mm
FamilyProducts
Orbital thread mill drill TC685
FHA Flute helix angle
13.5 Degree
FHH Flute helix hand
L - Hand of helix left
GAMF Rake angle radial
-13.5 Degree
GRDMFG Grade manufacturers designation
WB10RC
HAND Cutting direction
L - Left
ID Technical product number
7848969
Interface codes
J6 / J61
ISO
ZYL01G1600h$06
ISYC Subclass
303-09 - Thread end mill
LF Functional length
114.942 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03 ISO
ZYL01G1600h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01600115
LPR Protruding length
68 mm
LS Shank length
48 mm
MILTTY Mill tool type ISO
T - Thread cutter
Name Identifying order number
TC685-UNC3/4-A1E-WB10RC
OAL Overall length
116 mm
RPMX Rotational speed maximum
80000 1/min
STDLET Standard letter to the standard number
HA
STDNO Standard
PWZ-NORM
TCDCONMS ISO-tolerance class shank diameter
h6
THFT Thread form type
UN60
TPI Threads per inch
10 1/in
Working process
FPR - Profile milling,FSB - Thrilling (drilling & threading),FZI - Circular milling
WT Weight of item
0.26 kg
ZEFP Peripheral effective cutting edge count
4
