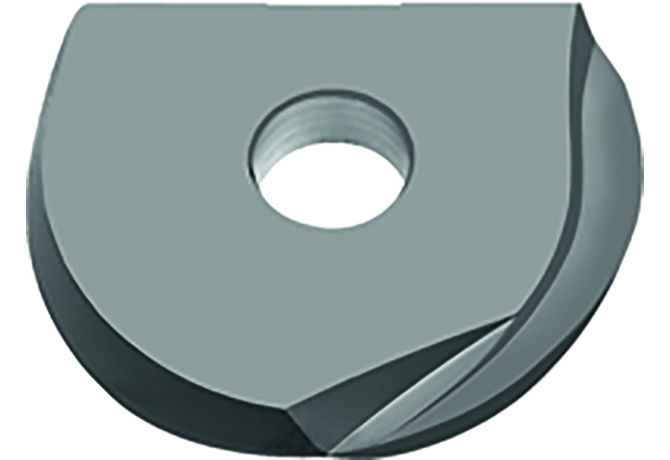

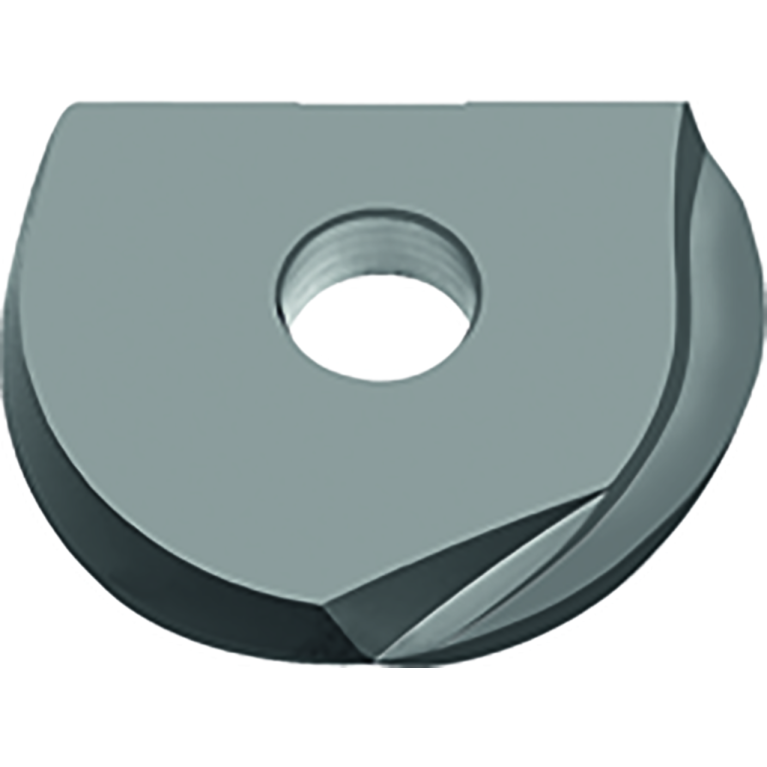

P3204-D07.94 WKP25

Артикул: 5097274

В наличии

В корзину

Описание

Характеристики

CBMD Chip breaker manufacturers designation

F55

COATN Coating / Покрытие

TiCN+Al2O3+(TiN)

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

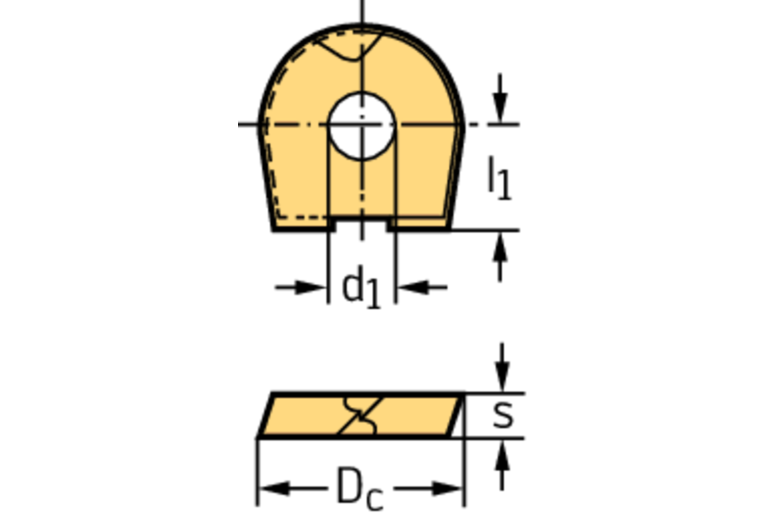

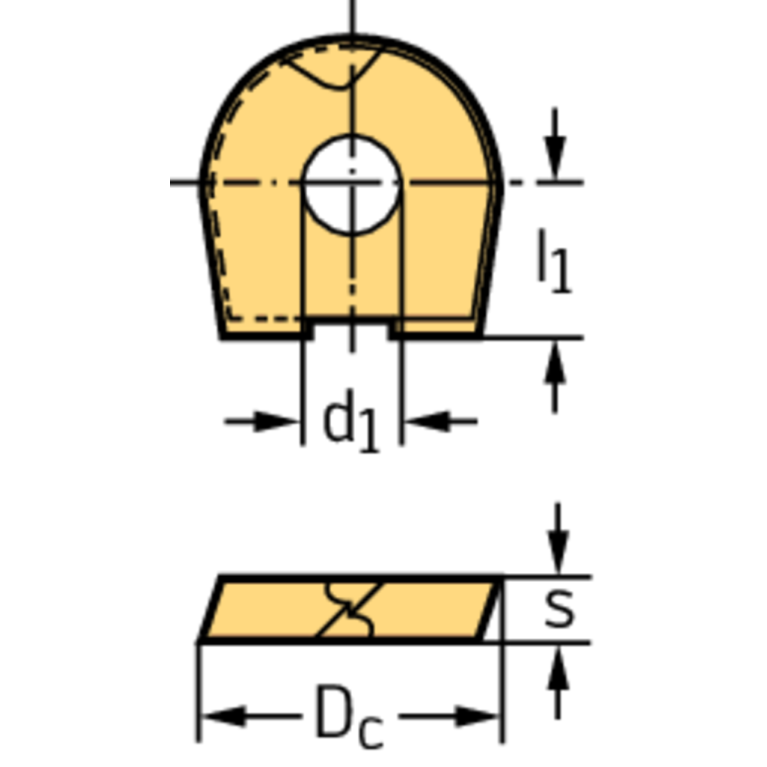

D1 Fixing hole diameter

3 mm

Delivery state valid from

12/1/2023

DIN

W-P32008$$3NB$$$$

FamilyProducts

Profile milling cutter inserts P3204

GRDMFG Grade manufacturers designation

WKP25

ID Technical product number

5097274

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

WR$$P32008$$3NB$$$$

ISYC Subclass

201-10 - Round insert

LOC-03 ISO

WR$$P32008$$3NB$$$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

W-P32008$$3NB$$$$

Name Identifying order number

P3204-D07.94 WKP25

S Insert thickness

2 mm

S1 Insert thickness total

2 mm

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

FFO - Die milling

WT Weight of item

0.002 kg
