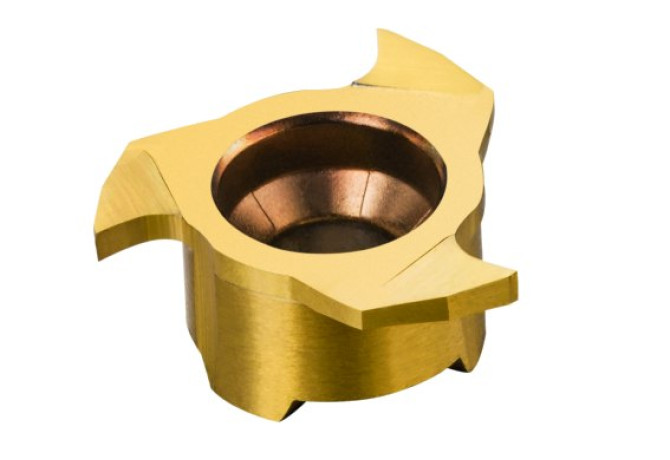

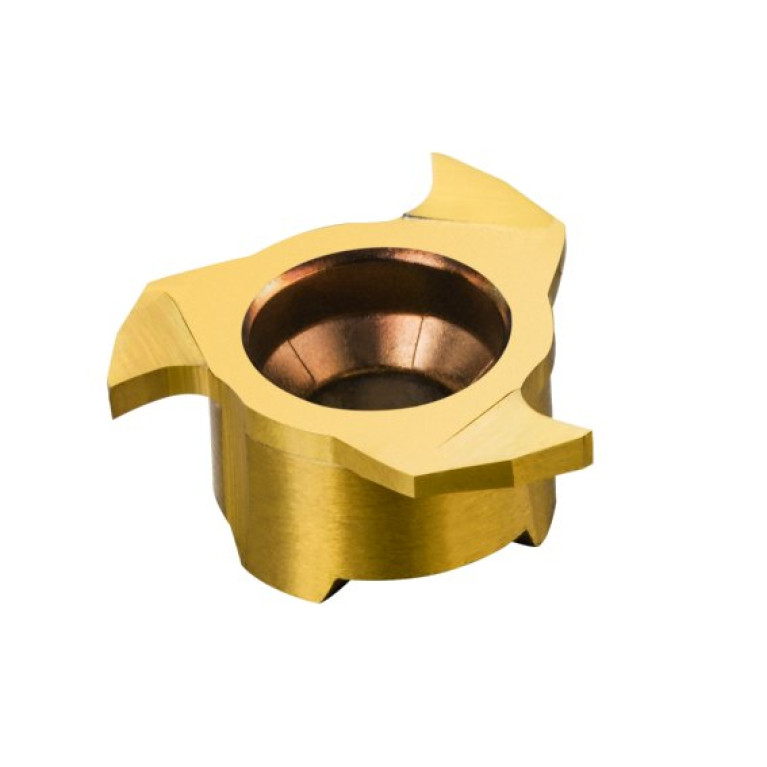

Главная Каталог продукции Sandvik Coromant 303-02 - Centre cutting end mill 327R12-22 30002-GM 1025

327R12-22 30002-GM 1025

327R12-22 30002-GM 1025 327R12-22 30002-GM 1025 327R12-22 30002-GM 1025 327R12-22 30002-GM 1025

327R12-22 30002-GM 1025

Sandvik Coromant
Артикул: 5758808
В наличии
В корзину
Описание
Характеристики
BMC (Body material code)
H - Solid carbide
CNSC (Coolant entry style code)
0 - Without coolant entry
COATN (Coating)
PVD TiAlN+TiN
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit

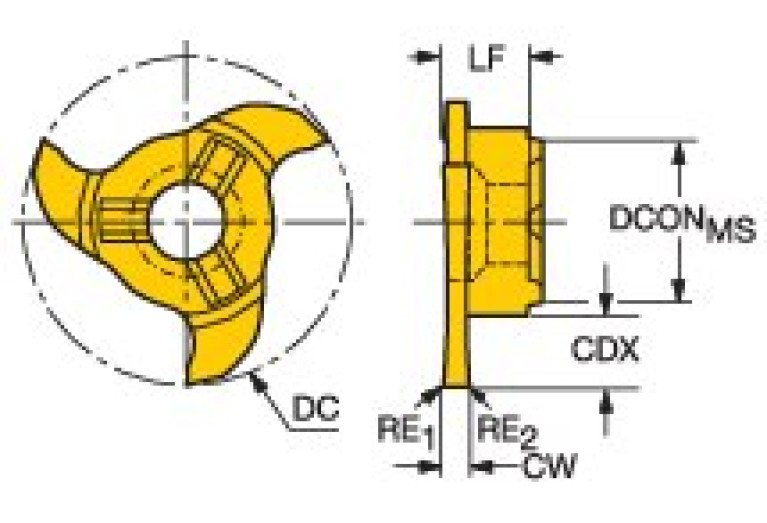

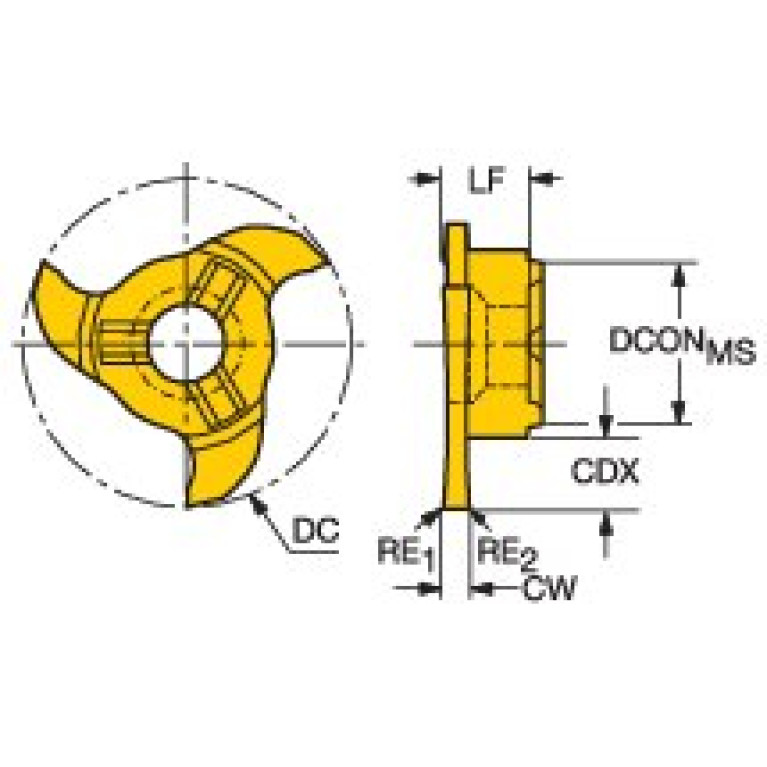

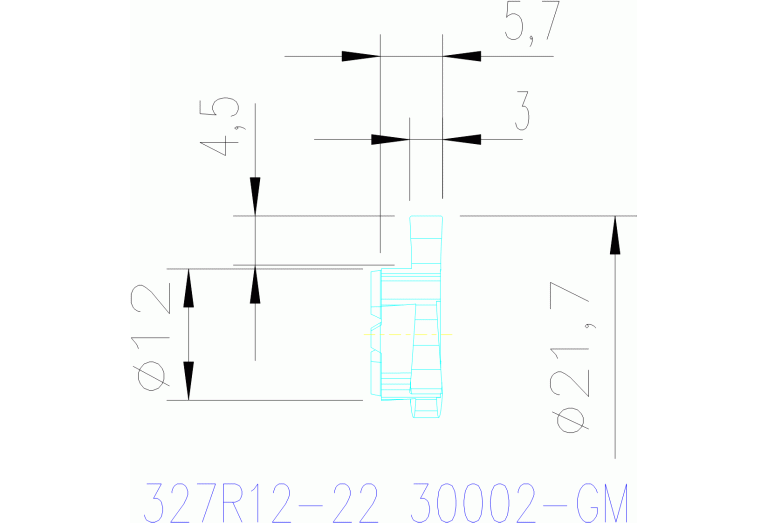

DC (Cutting diameter)
21.7 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
CMS01200287
F71 (Number of corner designs)
1
GAMF (Rake angle radial)
1.5 Degree
GAMP (Rake angle axial)
1.5 Degree
GRDMFG (Grade manufacturers designation)
1025
GRDPRIO (Standard designation of the grade main application)
HC
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
CMS02C0120$$$$
LF (Functional length)
5.7 mm
LOC-03 ISO
CMS02C0120$$$$
LOC-03 (CCFMS Connection code form)
02
LOC-03 (CCSMS Connection code style)
7 Serrated connection
LOC-03 (CCTMS Connection code type)
CMS Coromant Modular boring SANDVIK
LOC-03 (CCUMS Connection code unit base)
8 non-dimensional size
LOC-03 (CZCMS Connection size code)
0120
LOC-03 (DCONMS Diameter)
12 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CMS01200287
LPR (Protruding length)
5.7 mm
OAL (Overall length)
5.7 mm
RE (Corner radius)
0.2 mm
RPMX (Rotational speed maximum)
50000 1/min
Working process
FNB - Slotting,FNU - Groove milling
WT (Weight of item)
0.009 kg
ZEFF (Face effective cutting edge count)
3
ZEFP (Peripheral effective cutting edge count)
3
