Главная Каталог продукции Sandvik Coromant 303-02 - Centre cutting end mill 2S342-1270-152CMB M2CM

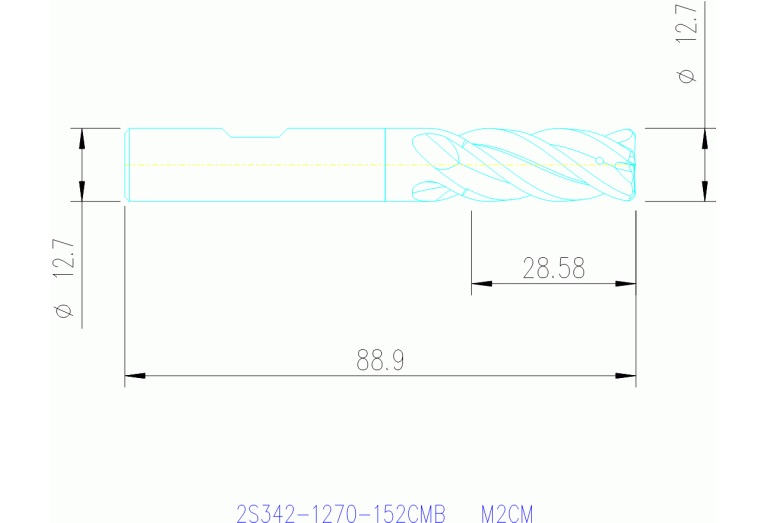

2S342-1270-152CMB M2CM

Артикул: 8352975

В наличии

В корзину

Описание

Характеристики

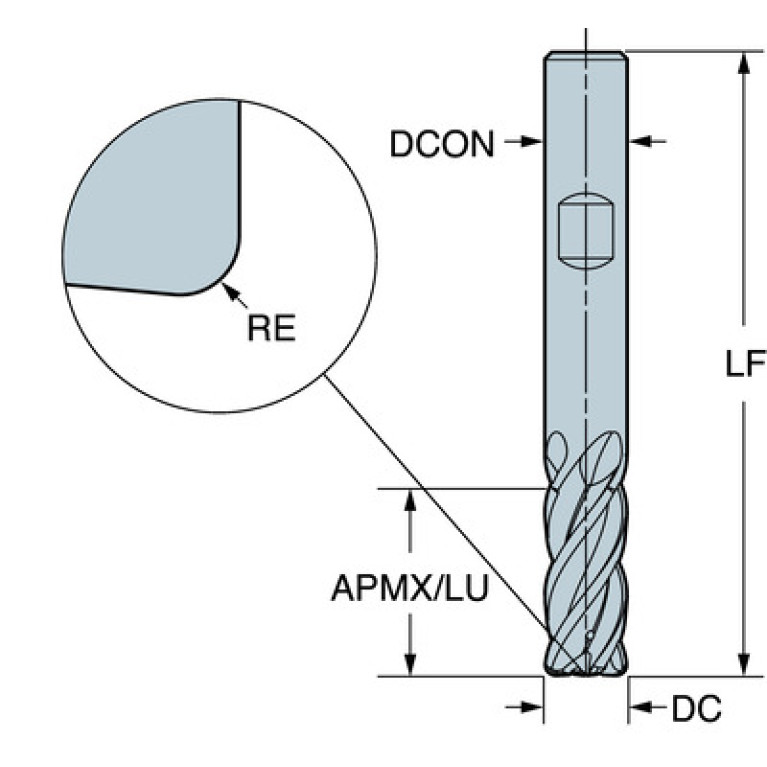

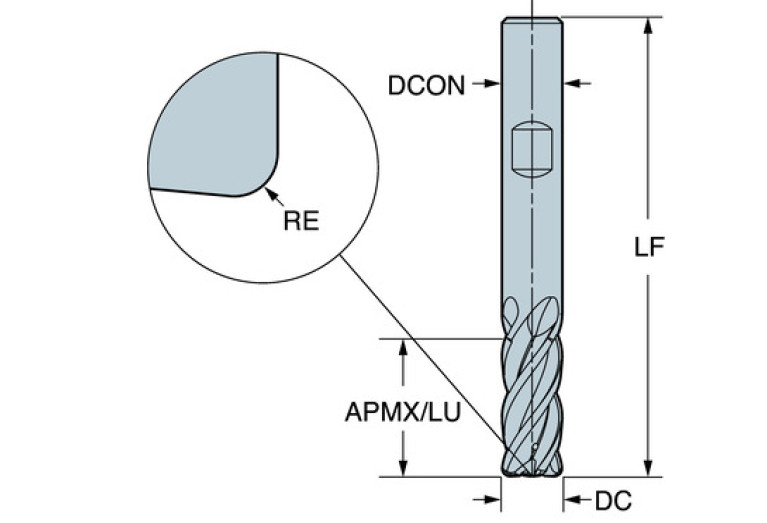

APMX (Depth of cut maximum)

28.575 mm

BMC (Body material code)

H - Solid carbide

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

COATN (Coating)

PVD TiAlSiN

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

DC (Cutting diameter)

12.7 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

ZYL05001035

F71 (Number of corner designs)

FHA (Flute helix angle)

38 Degree

FHH (Flute helix hand)

R - Hand of helix right

GAMF (Rake angle radial)

10.5 Degree

GAMP (Rake angle axial)

10.5 Degree

GRDMFG (Grade manufacturers designation)

M2CM

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL10R5000h$06

LF (Functional length)

66.278 mm

LOC-03 ISO

ZYL10R5000h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

3 Inch with coolant

LOC-03 (CZCMS Connection size code)

0500

LOC-03 (DCONMS Diameter)

12.7 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL05001035

LPR (Protruding length)

43.6 mm

LS (Shank length)

45.3 mm

Materials

M,S

OAL (Overall length)

88.9 mm

RE (Corner radius)

1.524 mm

RMPX (Ramping angle maximum)

5 Degree

RPMX (Rotational speed maximum)

48200 1/min

TCDCONMS (ISO-tolerance class shank diameter)

Working process

FEC - Square shoulder milling,FNB - Slotting,FNU - Groove milling,FPL - Face milling

WT (Weight of item)

0.14 kg

ZEFF (Face effective cutting edge count)

ZEFP (Peripheral effective cutting edge count)
