Главная Каталог продукции Toolunited 10 309-01 - Tool holder for longitudinal and transversal turning DCLNL-20-5D

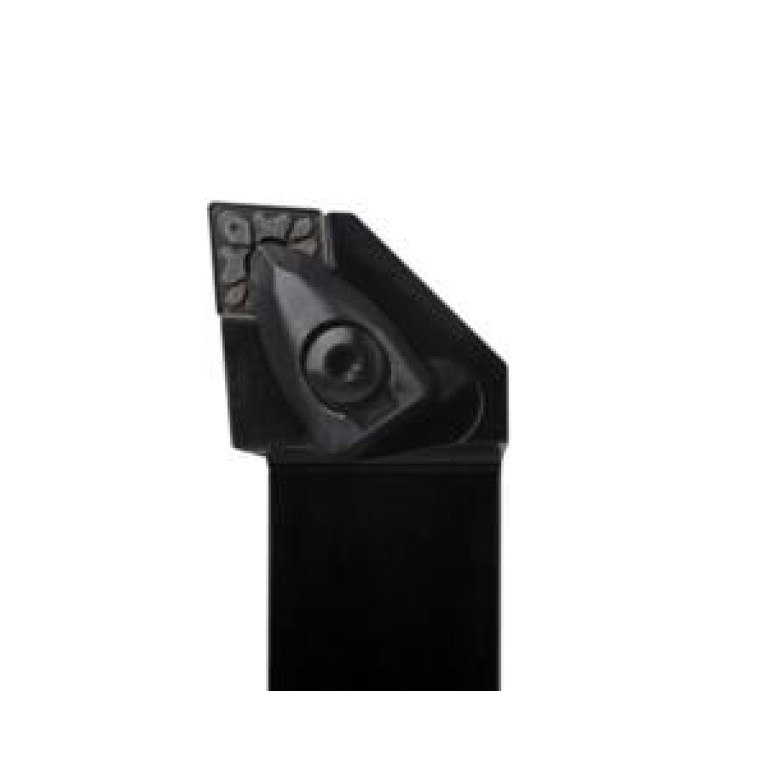

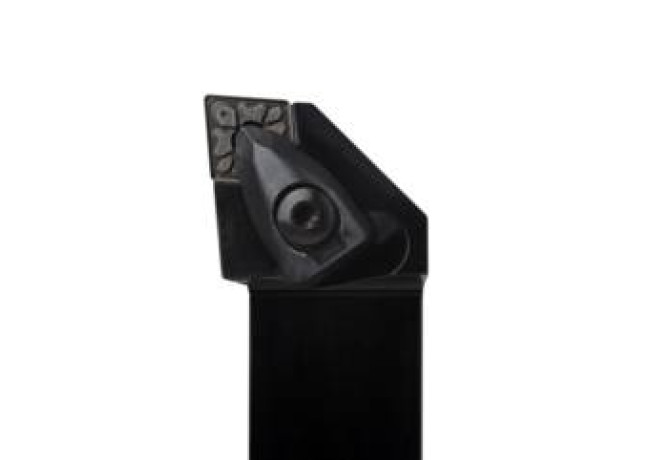

DCLNL-20-5D

DCLNL-20-5D DCLNL-20-5D DCLNL-20-5D DCLNL-20-5D

DCLNL-20-5D

Seco
Артикул: 02565465
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
VKT20200125
EPSR Insert included angle
80 Degree
FamilyProducts
DCLNL-20-5D
GAMO Rake angle orthogonal
-6 Degree
GAMP Rake angle axial
-6 Degree
HAND Cutting direction
L - Left
ID Technical product number
02565465
Interface codes
J6 /
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO CSW1
ISO$CN1606**2LB****
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning

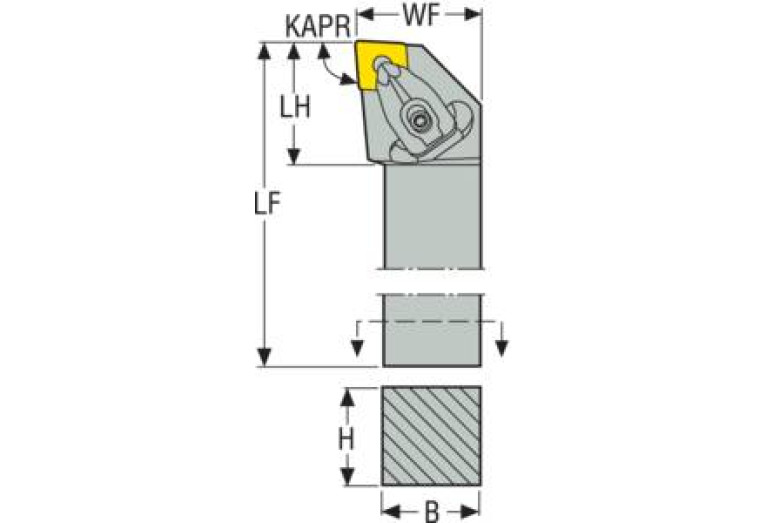

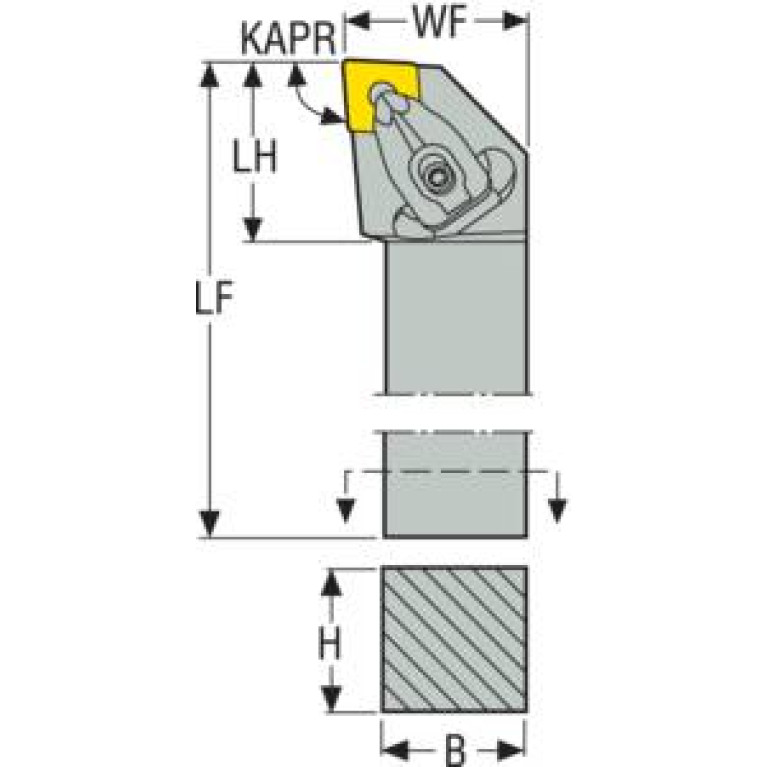

KAPR Tool cutting edge angle
95 Degree
LAMS Inclination angle
-6 Degree

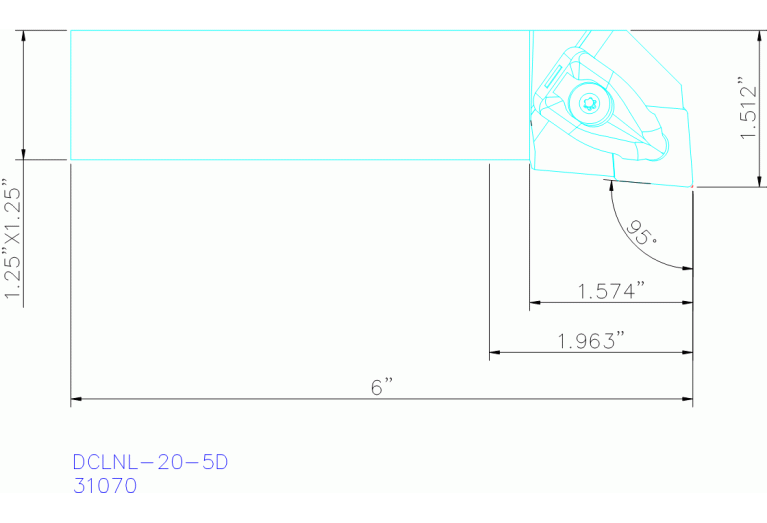

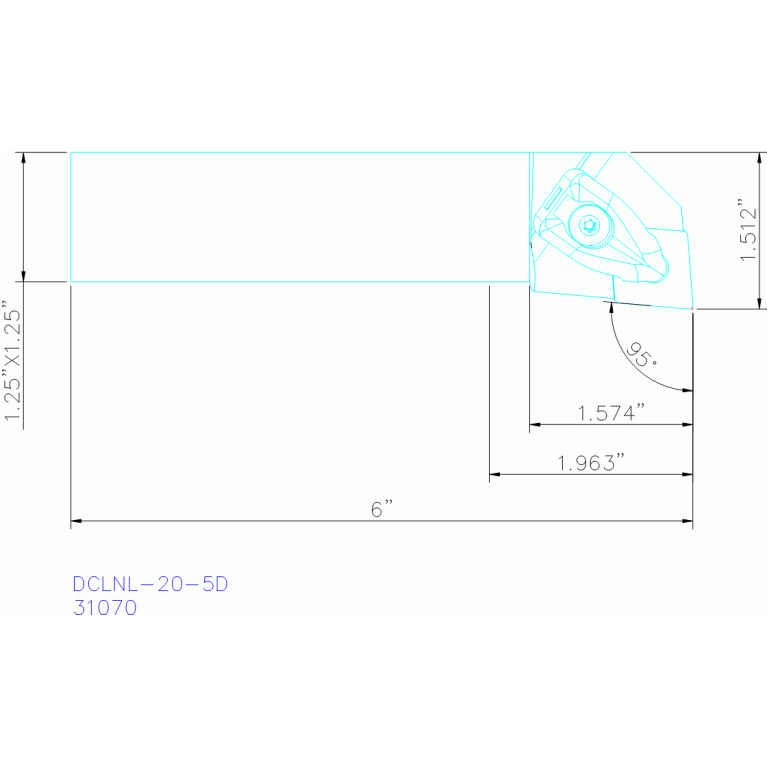

LF Functional length
152.4 mm
LH Head length
40 mm
LOC-03 B Shank width
31.75 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
2020
LOC-03 H Shank height
31.75 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT20200125
MIID Master insert identification
CN1606
MTP Clamping type code
D
Name Identifying order number
DCLNL-20-5D
STDDES Standard designation
DCLNL-20-5D
THSC Tool holder shape code
A - offset shank design
WF Functional width
38.1 mm
Working process
No working processes available
WT Weight of item
1.28 kg
